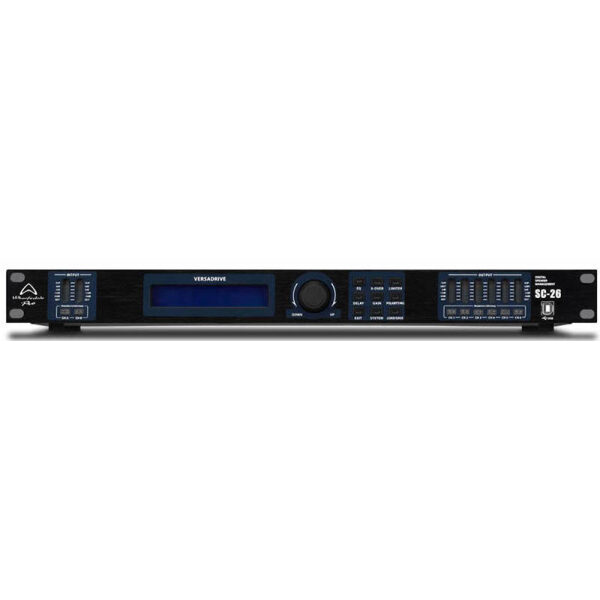

Wharfedale Pro Versadrive SC-26

Kirjeldus

• All-new Speaker Management System
• The new Versadrive SC-26 speaker management system offers all the digital signal processing a live sound engineer needs. Packaged into a neat 1U rack design, an intuitive and concise front panel with LCD screen enables engineers to make essential adjustments to the speaker configuration with accuracy. Versadrive takes control of all audio dynamics such as crossover, EQ and limiter. With USB and RS485 connectivity Versadrive can be networked and controlled using the supplied software directly from your PC. With a 32-bit DSP processor and 24-bit A/D and D/A converter, rest assured your sound will be heard clearly across every speaker in your rig.

• 2 x XLR inputs
• 6 x XLR outputs
• complete digital sound processing solution
• 6-band parametric EQ with low/high shelf
• limiter
• crossover / filter
• independent processing for each output channel
• intuitive rotary control with LCD front panel
• 0 Save slots
• WLA, Delta and EVP-X MKII factory presets
• USB connection for editing settings
• RS485 connection for remote control up to 1500m
• password protection for venue install
• frequency response (±0.5dB): 20Hz – 20KHz
• DSP: 32-bit
• A/D D/A Converter: 24-bit / 96 kHz
• S/N Ratio: >110dB
• delay time range: 0-1000ms
• filter Types: Linkwitz-Riley, Bessel, Butterworth Up to 48dB/oct.
• EQ: 6-band parametric / low shelf / high shelf
• memory: 30 save slots
• number of inputs: 2
• number of outputs: 6
• input connection: XLR
• output connection: XLR
• PC connections: USB / 2 x RS485
