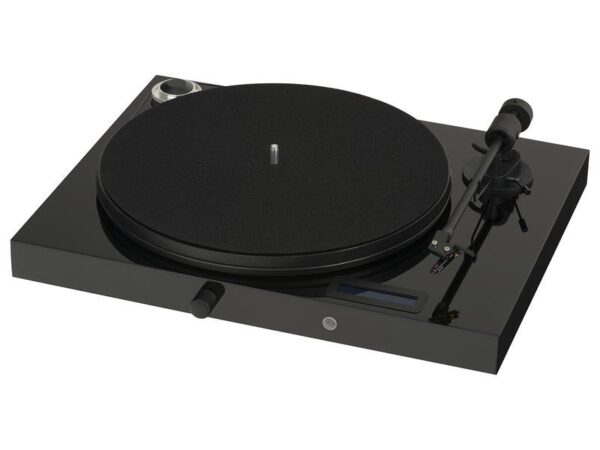

Pro-Ject JukeBox E

Kirjeldus

Power output: 2 x 50 Wats (4 Ohm)
Outputs: Speakers, Line out (fixed), Phono out
Inputs: Bluetooth, 1x Line (analogue)
Speed: 33, 45 (manual speed change)
Principle: Belt drive
Speed variance: 33: 0.8% 45: 0.7%
Wow & flutter: 33: 0.29% 45: 0.27%
Platter: 300 mm plywood with felt mat
Main bearing: Stainless steel in bronze bushing
Tonearm: 8.6” aluminium
Effective arm length: 218.5 mm
Overhang: 22.0 mm
Effective tonearm mass: 8.0 g
Counterweight for mass: 3 – 5.5g (pre-mounted)
Tracking force range: 0 – 25mN (OM5e 18mN pre-adjusted)
Included accessory: Power supply, dust cover, remote control
Power consumption: 110W max

Stylus OM5e

Frequency range: 20 – 25.000 Hz
Frequency response: 20 – 25.000 Hz
Tracking ability at 315Hz at recommended tracking force: 65 µm
Compliance, dynamic, lateral: 20 µm/mN
Stylus type: Elliptical
Stylus tip radius: r/R 8/18 µm
Equivalent stylus tip mass: 0.5 mg
Tracking force range: 1.5 – 2.0 g (15 – 20 mN)
Tracking force, recommended: 1.75 g (17.5 mN)
Tracking angle: 20°
Stylus colour: Black
