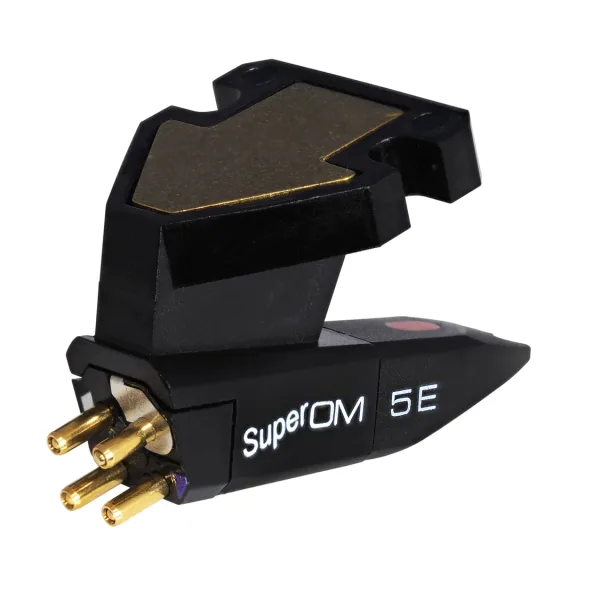

Ortofon Super OM 5E

Kirjeldus

Channel balance at 1 kHz: 1.5 dB
Output voltage at 1 kHz, 5cm/sec: 4 mV
Channel seperation at 1 kHz: 22 dB
Channel seperation at 15 kHz: 15 dB
Frequency response 20 Hz – 20 kHz: 20-22.000 Hz + 3 / -3
Tracking ability at 315Hz at recommended tracking force: 60 µm
Compliance, dynamic, lateral: 20 µm/mN
Stylus type: Elliptical
Stylus tip radius: r/R 8/18 µm
Tracking force range: 1.5-2.0 g (15-20 mN)
Tracking force, recommended: 1.75 g (17.5 mN)
Tracking angle: 20°
Internal impedance, DC resistance: 1 kOhm
Cartridge colour: Black/Black
Cartridge weight: 2.5 g
Reccomended load resistance: 47 kOhm
Internal inductance: 580 mH
Recommended load capacitance: 200-500 pF
