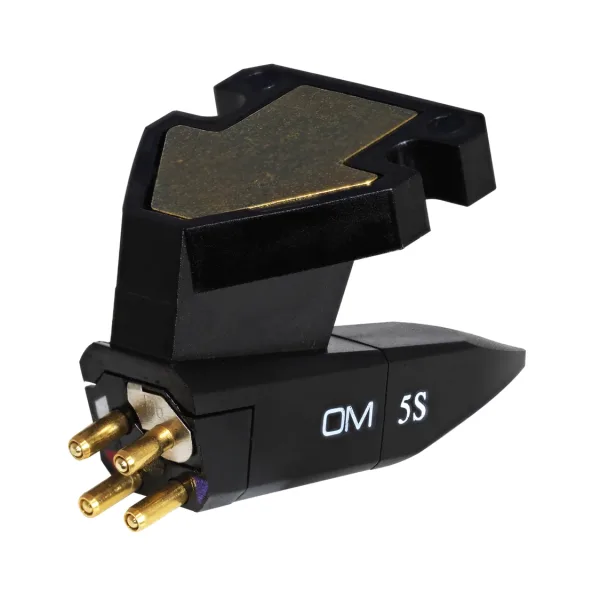

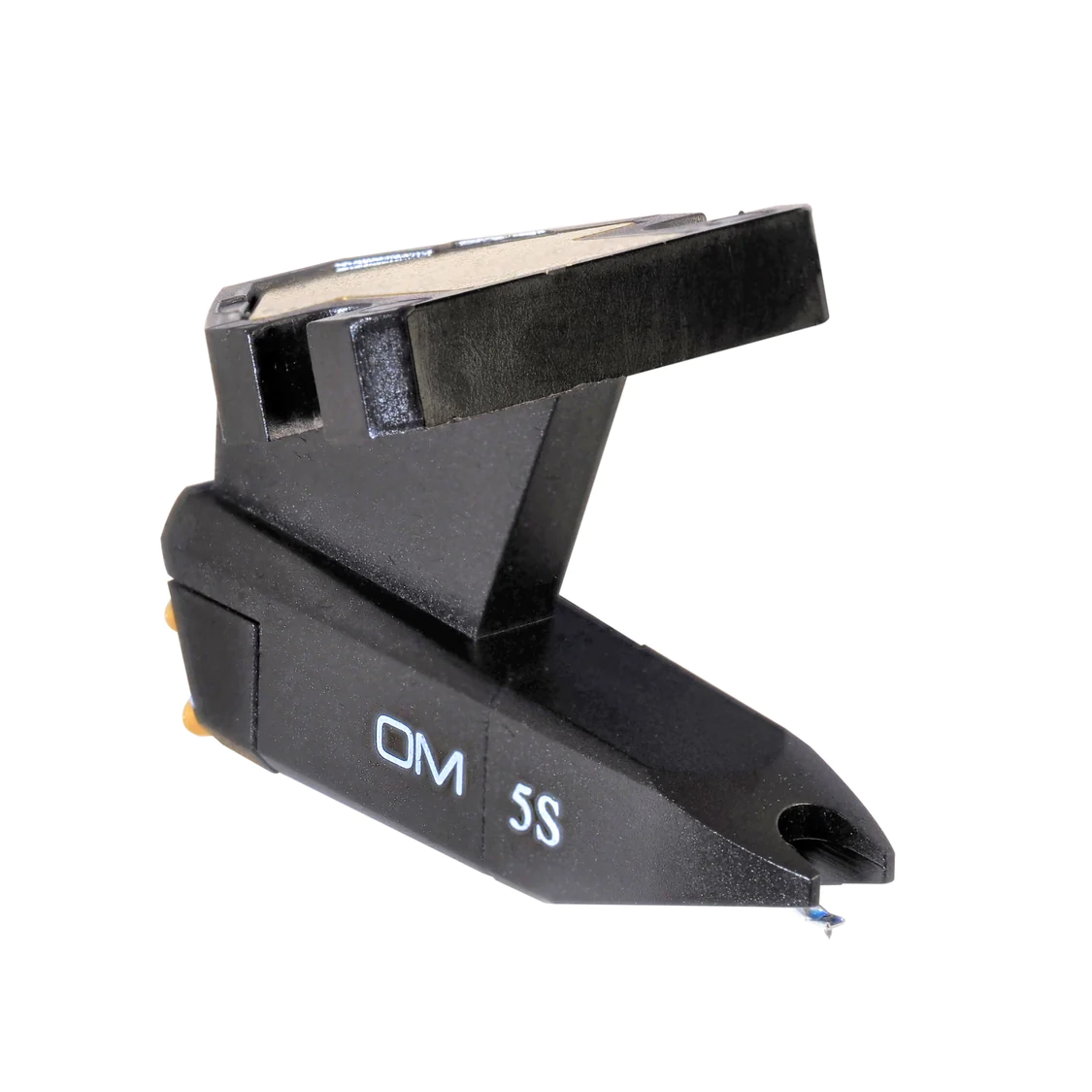

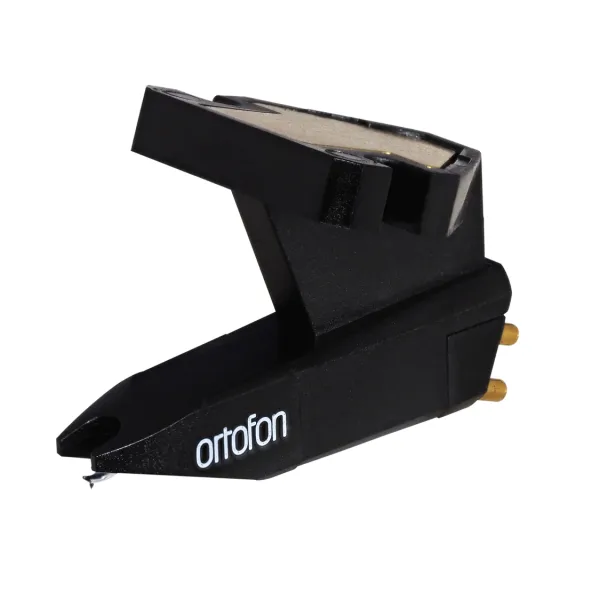

Ortofon OM 5S

Kirjeldus

Channel balance at 1 kHz: 2 dB
Output voltage at 1 kHz, 5cm/sec: 4.5 mV
Channel seperation at 1 kHz: 20 dB
Channel seperation at 15 kHz: 12 dB
Frequency response 20 Hz – 20 kHz: 20-20.000 Hz
Tracking ability at 315Hz at recommended tracking force: 60 µm
Compliance, dynamic, lateral: 20 µm/mN
Stylus type: Spherical
Stylus tip radius: R 18 µm
Tracking force range: 1.5-2.0 g (15-20 mN)
Tracking force, recommended: 1.75 g (17.5 mN)
Tracking angle: 20°
Internal impedance, DC resistance: 750 Ohm
Cartridge colour: Black/Black
Cartridge weight: 2.5 g
Reccomended load resistance:47 kOhm
Internal inductance: 450 mH
Recommended load capacitance: 200-500 pF
Replacement stylus: Stylus 5S
