JVC LX-NZ3B

Kirjeldus

• 4K resolution (3840 x 2160) and HDR (HDR10/HLG) compatible.
• Compact design for installation convenience: 41 cm by 34 cm, and less than 15 cm high (Approx. 16″ by 13-1/2″, and 5-3/4″ in height)
• 4K input specs: Supports 4K/60p, 4:4:4/36bit, 4K/60p 4:2:2/36bit, and 4K/24p 4:4:4/36bit signals – for more vivid colours and subtle gradations
• Connectors: PC in, HDMI 1 with HDCP2.2 support, HDMI 2, USB Mini B, Trigger (12 V), USB Mini A (1.5 A power supply), and RS-232
• “BLU-Escent” Laser Light Source
• 3,000 lm brightness and 20,000-hour long life
• HDR (high dynamic range) for more realistic, dynamic images
• “Auto Tone Mapping” for pristine HDR10 picture quality
• 0.47-inch DMD for bright high-definition 4k images
• Dynamic contrast ratio: Infinity:1

Lens
Zoom 1.6x manual zoom/focus lens
f 14.3 – 22.9 mm
F 1.809
Projection size 60″ to 200″
Lamp life Approx. 20,000 hours in normal mode
Brightness 3,000 lm
Contrast Ratio Infinity:1 (Dynamic contrast ratio)

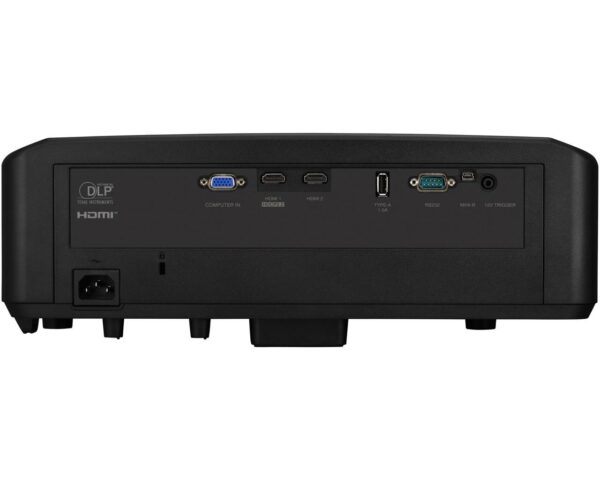

Video input terminals (back panel)

HDMI 2 (HDCP2.2 x 1, HDCP1.4 x1)
PC 1 (D-sub 15pin)

Output terminals (back panel)

USB 1 (Type A; Power supply 5 V/1.5 A)
Trigger 1 (mini jack, DC12V/0.1 A)

Control terminals

RS232C 1 (D-sub 9-pin)
USB 1 (Type B mini for service)
Device 0.47″ DMD (1920 x 1080)
Resolution 3840 x 2160
Lens shift function +/-60% vertical & +/-23% horizontal, motorized
Light source lamp BLU-Escent (Laser Phosphor)

General

Noise level 29 dB (Eco) / 34 dB (Normal)
Power requirement AC110 V-240 V, 50/60 Hz
Power consumption 360 W
Standby 0.4 W
Networked standby 0.4 W (RS-232C)
Switchover time 11 min. (To standby or networked standby; default)
Dimensions: W x H x D, mm 405 x 145.8 x 341
Weight, kg 6.3
