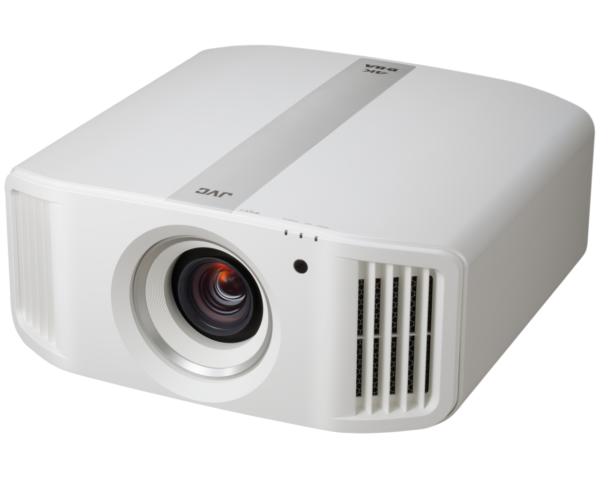

JVC DLA-NP5W


Device: 0.69-inch Native 4K DILA Device (4096×2160) x3
Resolution: 4096 x 2160
Lens shift function: +/-80% vertical & +/-34% horizontal, motorised in 16:9 aspect mode
Light source lamp: NSH 265 W
Lens: All-glass lens with 65 mm diameter
Zoom: 2X zoom & focus, motorised
Lamp life: Approx. 4500 hours in Low mode
Brightness: 1,900 lm
Contrast Ratio: Native: 40,000:1, Dynamic: 400,000:1
Video format: Digital: 480p, 576p, 720p 60/50, 1080i 60/50, 1080p 120/100/60/50/30/25/24, 2048×1080 120/100/60/50/30/25/24, 3840 x 2160p 120/100/60/50/30/25/24, 4096 x 2160p 120/100/60/50/30/25/24

PC input signal

HDMI: VGA/ SVGA/ XGA/ WXGA/ WXGA+/ SXGA/ WSXGA+/ UXGA/ WUXGA/ WQHD (60)/ WQHD (120)

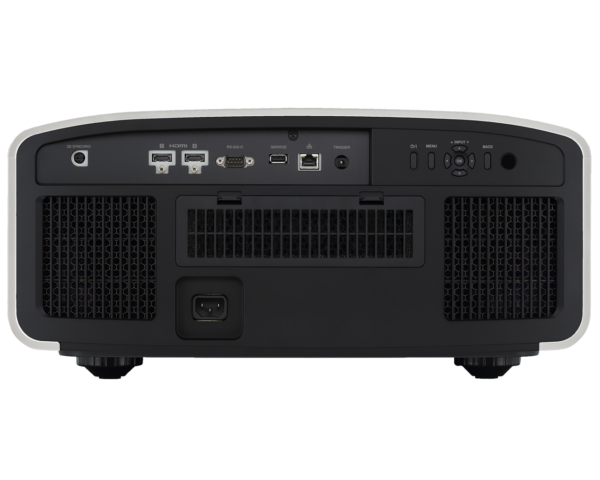

Video input terminals (back panel)

HDMI: 2 (48Gbps, HDCP2.3, no support for CEC)

Output terminals (back panel)

3D sync: 1 (Mini DIN 3-pin)
Trigger: 1 (mini jack, DC12V/100mA)

Control terminals

RS232C: 1 (D-sub 9-pin)
LAN: 1 (RJ-45)
Service terminal
Service: 1 (USB Type A) (for firmware update)

3D

3D format
Frame packing: 720p 60/50, 1080p 24
Side-by-side: 720p 60/50, 1080p 60/50/24, 1080i 60/50
Top & bottom: 720p 60/50, 1080p/24

General

Noise level: 24dB (in Low Mode)
Power requirement: AC100V-240V, 50/60Hz
Projector in use: 420 W
Standby: Normal: 1.5W, Eco-mode: 0.3W
Networked standby: 1.3 W (LAN), 1.0 W (RS-232C), 1.3 W (LAN and RS-232C)
Switchover time: 20 min. (To standby or networked standby; default)
Dimensions: W x H x D, mm: 500 x 234 x 495
Weight, kg: 19.2
