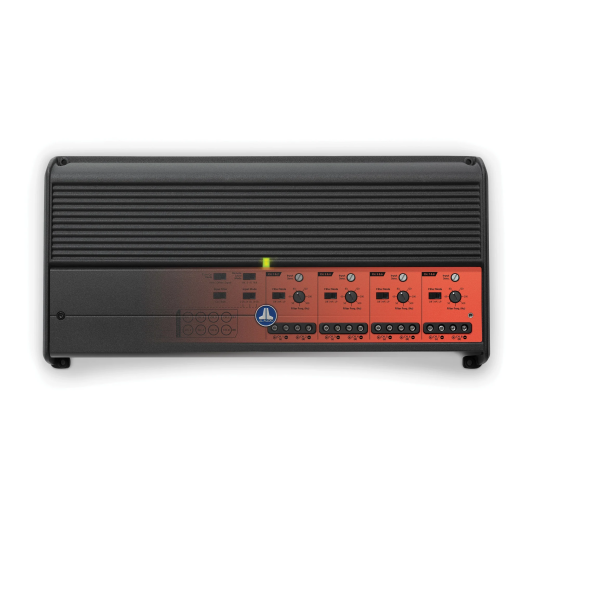

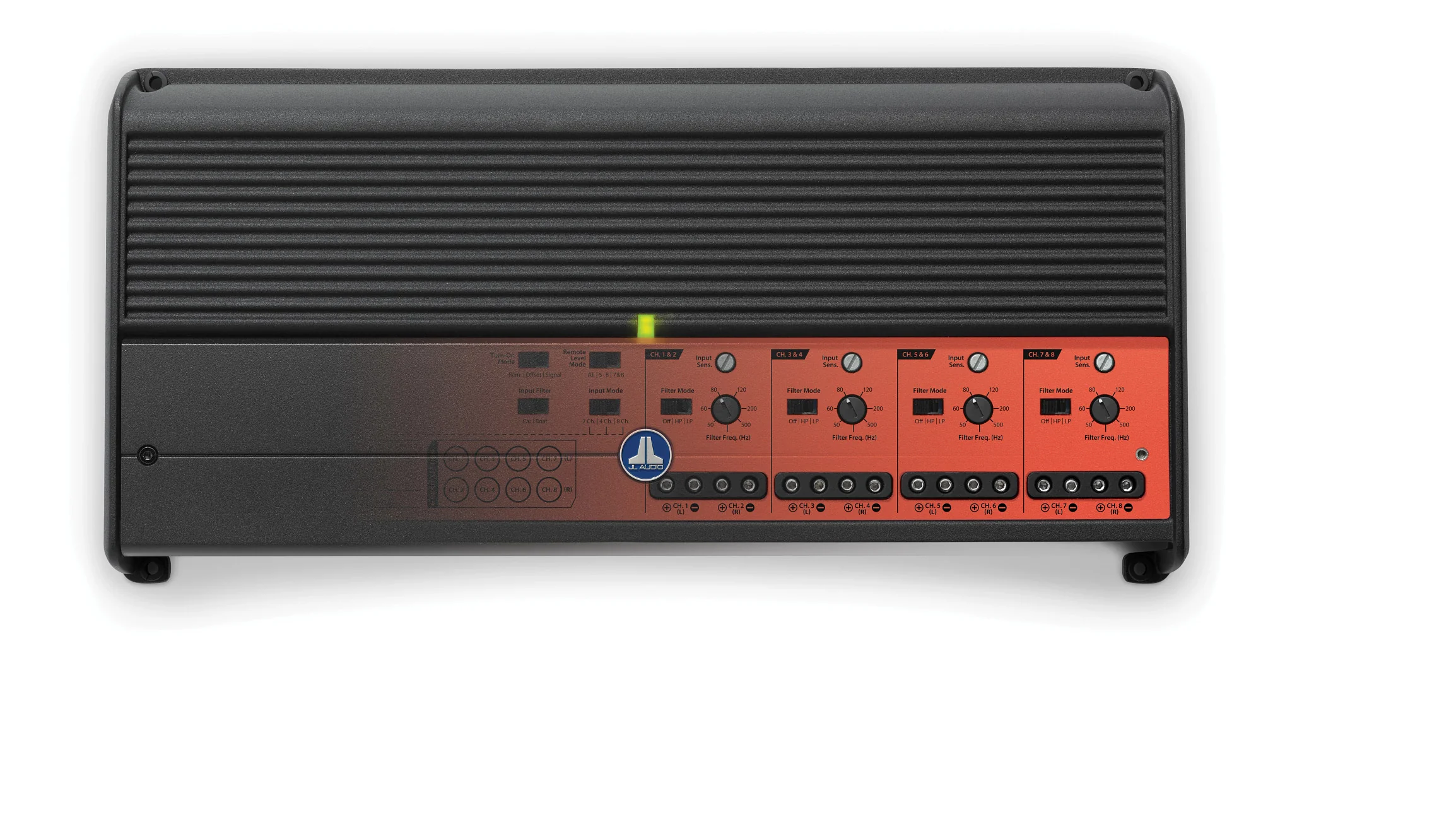

JL Audio XDM800/8-24V

Rated Continuous (RMS) Power @ 28.8 V
@ 4 Ω 75 W RMS x 8
@ 2 Ω 100 W RMS x 8
Bridged @ 4Ω 200 W RMS x 4

General Specifications
Frequency Response 12 Hz – 22 kHz (+0, -1dB)
S/N Ratio, referred to highest rated power >104 dB below rated power (A-weighted, 20 Hz – 20 kHz noise bandwidth)
S/N Ratio, referred to 1 W >84 dB (A-weighted, 20 Hz – 20 kHz noise bandwidth)
Damping Factor @ 4 Ω >150 / 50 Hz
Damping Factor @ 2 Ω >75 / 50 Hz
THD+N @ Rated Power <1% @ 2 Ω per Ch.
Input Voltage Range @ RCA Inputs 200 mV – 4 V RMS
Min.Copper Power / Ground Wire Gauge 4 AWG wire
Fuse Rating 40 A (AFS, AGU or MaxiFuse™)

Physical Specifications
Height (H) 2.05 in / 52 mm
Width (W) 14.73 in / 374 mm
Depth (D) 7.09 in / 180 mm
