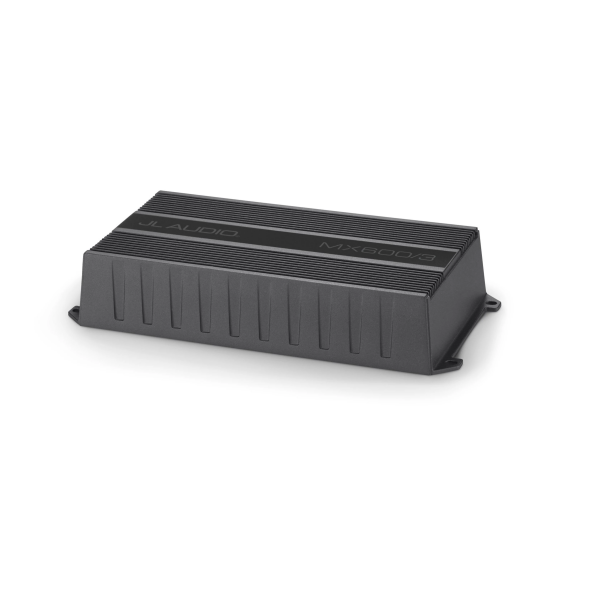

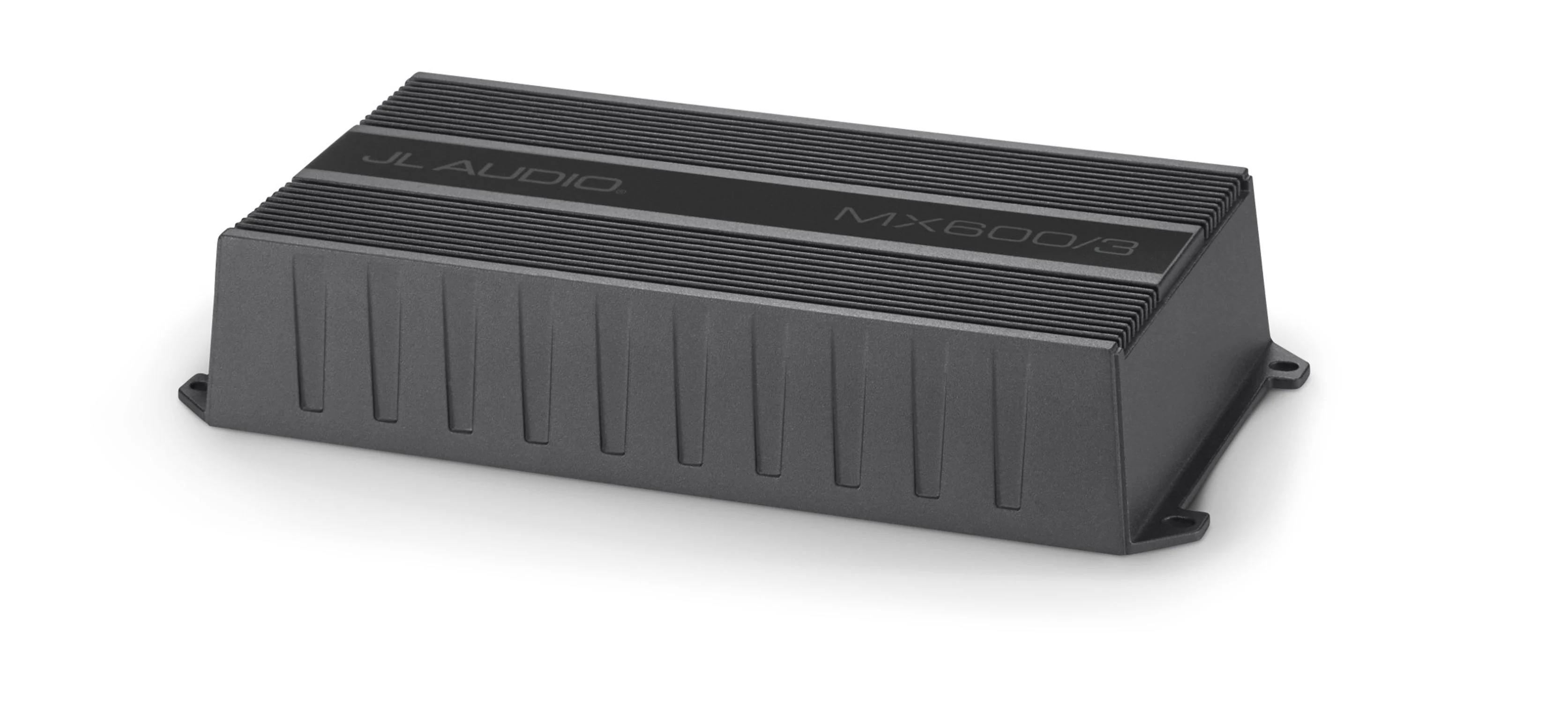

JL Audio MX600/3

Rated Continuous (RMS) Power @ 14.4 V
Main Channels @ 4 Ω 75 W RMS x 2
Main Channels @ 2 Ω 100 W RMS x 2
Main Channels – Bridged @ 4Ω 200 W RMS x 1
Subwoofer Channel @ 4 Ω 250 W RMS x 1
Subwoofer Channel @ 3 Ω 300 W RMS x 1
Subwoofer Channel @ 2 Ω 400 W RMS x 1
Subwoofer Channel @ 1.5 Ω N/A

General Specifications
Frequency Response 20 Hz – 20 kHz (+0, -1dB)
S/N Ratio, referred to highest rated power >88 dB below rated power (A-weighted, 20 Hz – 20 kHz noise bandwidth)
S/N Ratio, referred to 1 W >68 dB (A-weighted, 20 Hz – 20 kHz noise bandwidth)
Damping Factor @ 4 Ω >92 / 50 Hz
Damping Factor @ 2 Ω >43 / 50 Hz
THD+N @ Rated Power (Main Channels) <1% @ 2 Ω per Ch.
THD+N @ Rated Power (Subwoofer Channels) <1% @ 2 Ω per Ch.
Input Voltage Range @ RCA Inputs Switchable from 250 mV – 4 V RMS (Low) to 580 mV – 14 V RMS (High)
Min.Copper Power / Ground Wire Gauge 4 AWG wire
Fuse Rating 60 A (AFS, AGU or MaxiFuse™)

Physical Specifications
Height (H) 1.77 in / 45 mm
Width (W) 9.33 in / 237 mm
Depth (D) 4.50 in / 115 mm
