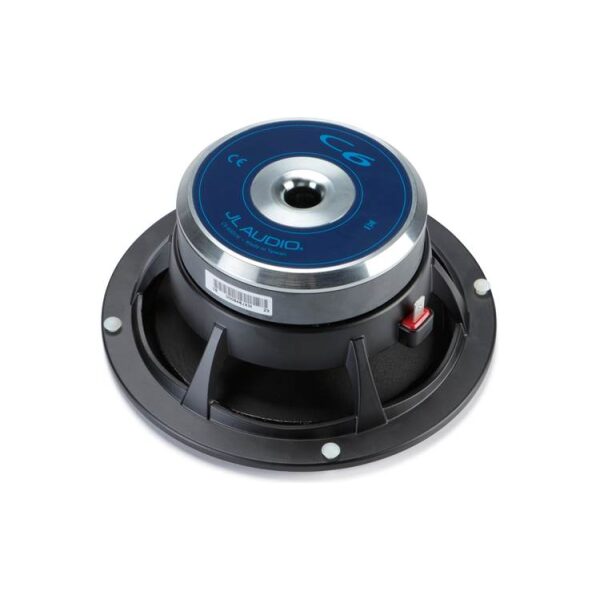

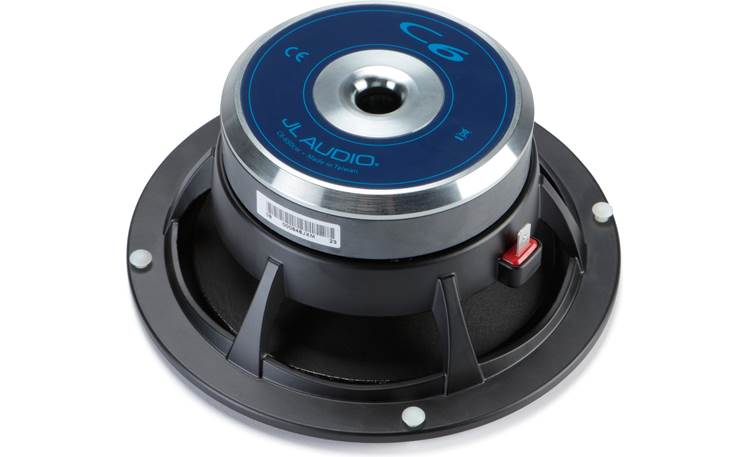

JL Audio JLC6-650cw

Kirjeldus

Omadused:

Continuous Power Handling (RMS) 100 W
Recommended Amplifier Power (RMS) 25 – 150 W / Ch.
System Efficiency 87.37 dB @ 1 W / 1 m
System Nominal Impedance 4 Ω
System Frequency Response 55 Hz – 6 KHz ± 3 dB

Frame Outer Diameter* (A) 6.50 in / 165 mm
Grille Tray Outer Diameter** (B) 6.76 in / 172 mm
Motor Outer Diameter (C) 3.54 in / 90 mm
Frontal Coaxial Tweeter Protrusion (D) N/A
Frontal Grille Protrusion*** (E) 1 in / 25 mm
Mounting Hole Diameter (F) 5.46 in / 139 mm
Mounting Depth (G) 2.60 in / 66 mm
