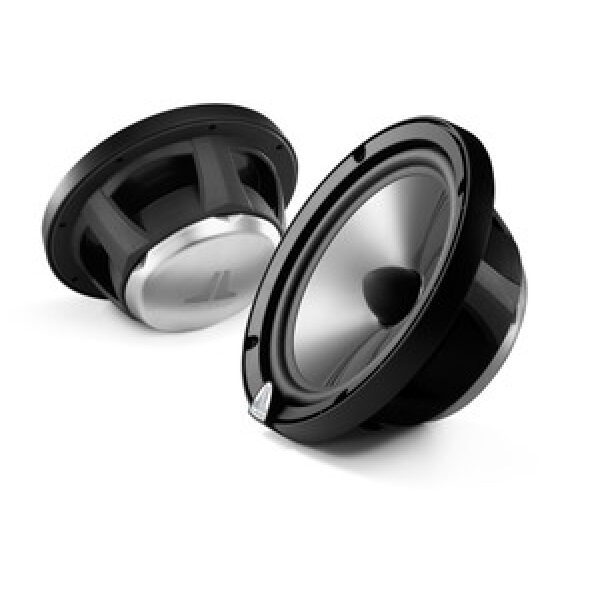

JL Audio C3-600cw

Kirjeldus

Omadused:

General Specifications
Continuous Power Handling (RMS) 75 W
Recommended Amplifier Power (RMS) 25 – 150 W / Ch.
System Efficiency 89.5 dB @ 1 W / 1 m
System Nominal Impedance 4 Ω
System Frequency Response 50 Hz – 25 KHz ± 3 dB

Woofer Physical Specifications
Frame Outer Diameter (A) 6.21 in. / 157.7 mm
Grille Tray Outer Diameter (B) 6.46 in. / 164.1 mm
Motor Outer Diameter (C) 4.08 in. / 103.6 mm
Frontal Coaxial Tweeter Protrusion* (D) 0.81 in. / 20.6 mm
Frontal Grille Protrusion** (E) 1.03 in. / 26.2 mm
Mounting Hole Diameter (F) 5.00 in. / 127 mm
Mounting Depth (G) 2.49 in. / 63 mm
