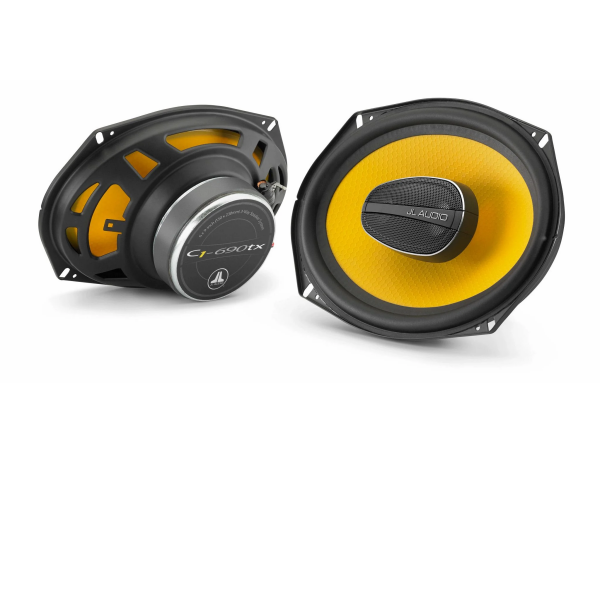

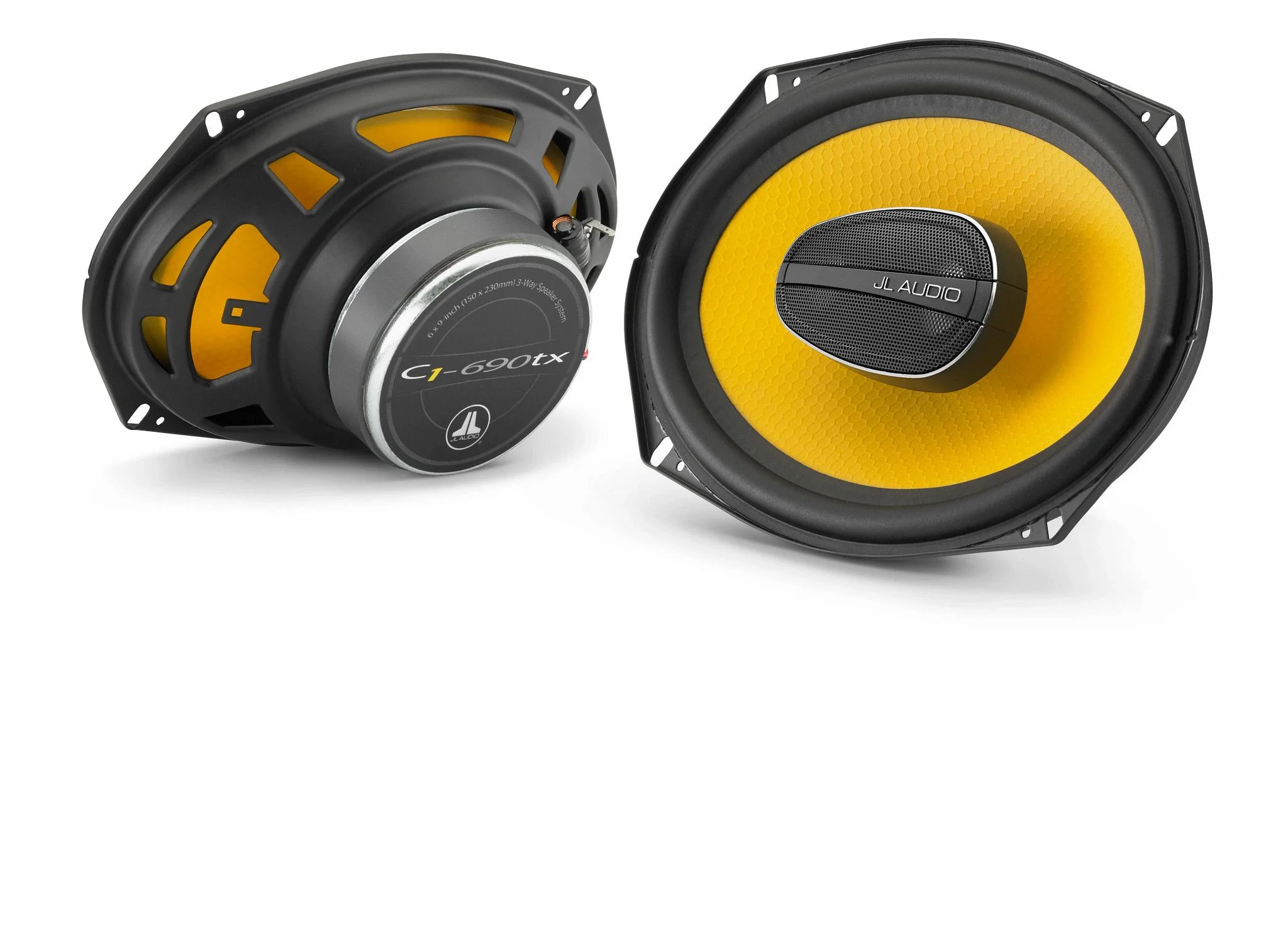

JL Audio C1-690tx

Kirjeldus

Omadused:

General Specifications
Continuous Power Handling (RMS) 60 W
Recommended Amplifier Power (RMS) 10 – 100 W / Ch.
System Efficiency 90.5 dB @ 1 W / 1 m
System Nominal Impedance 4 Ω
System Frequency Response 36 Hz – 24 KHz ± 3 dB

Coaxial Physical Specifications
Frame Outer Diameter* (A) 6.38 x 9.33 in / 162 x 237 mm
Grille Tray Outer Diameter (B) N/A
Motor Outer Diameter (C) 3.94 in / 100 mm
Frontal Coaxial Tweeter Protrusion** (D) 0.72 in / 18 mm
Frontal Grille Protrusion (E) N/A
Mounting Hole Diameter (F) N/A
Mounting Depth (G) 3.09 in / 79 mm
