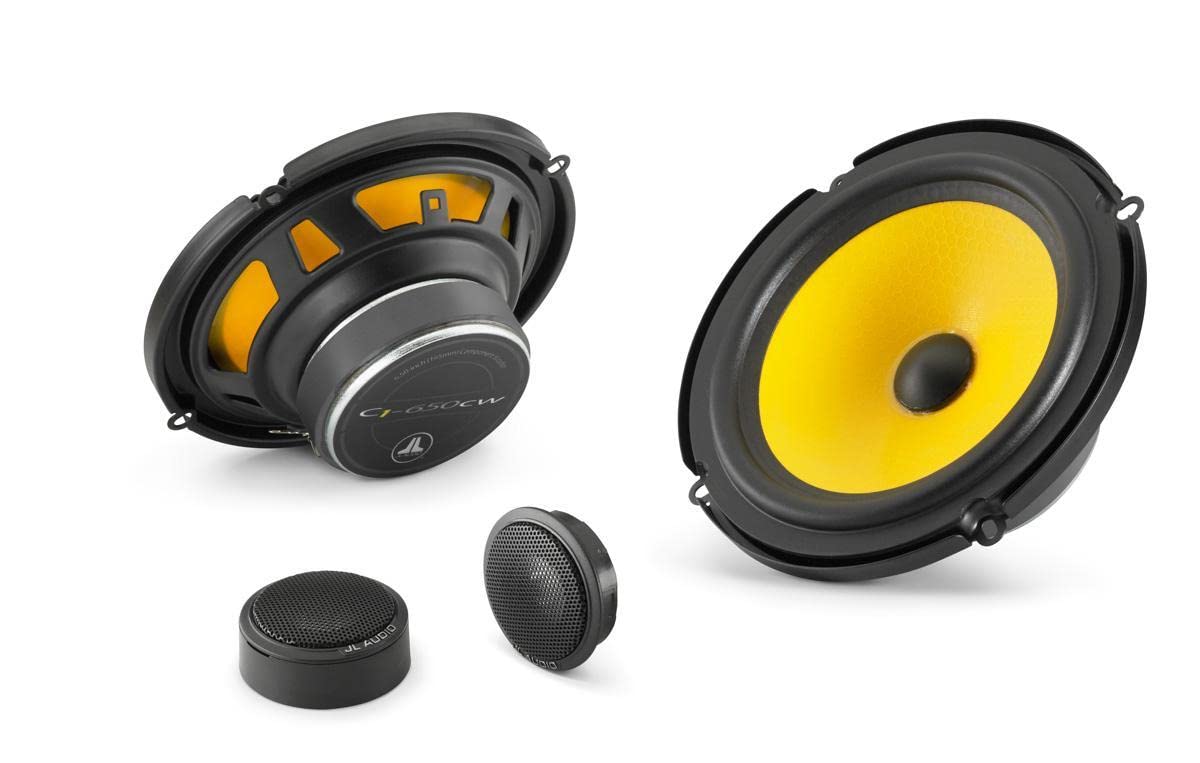

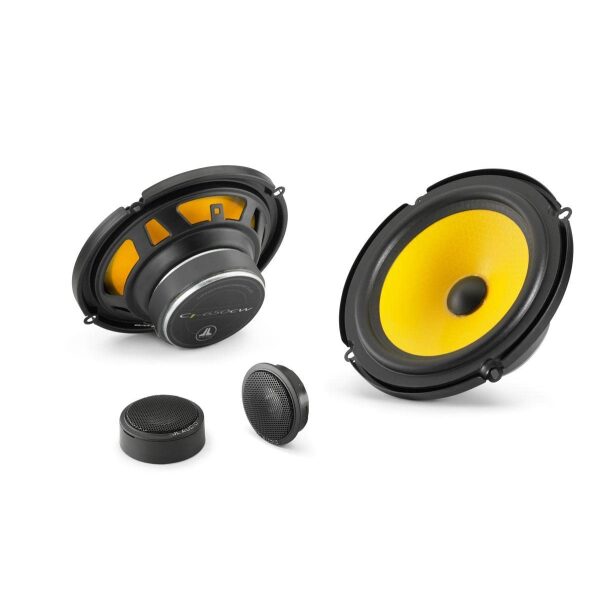

JL Audio C1-650

Kirjeldus

Omadused:

Continuous Power Handling (RMS) 50 W
Recommended Amplifier Power (RMS) 10 – 75 W / Ch.
System Efficiency 91.0 dB @ 1 W / 1 m
System Nominal Impedance 4 Ω
System Frequency Response 48 Hz – 24 KHz ± 3 dB

Frame Outer Diameter* (A) 6.25 in / 159 mm
Grille Tray Outer Diameter (B) 6.84 in / 174 mm
Motor Outer Diameter (C) 3.15 in / 80 mm
Frontal Coaxial Tweeter Protrusion (D) N/A
Frontal Grille Protrusion** (E) N/A
Mounting Hole Diameter (F) 5.02 in / 128 mm
Mounting Depth (G) 2.07 in / 53 mm

Flush Mount Fixture Diameter (A1) 1.87 in / 48 mm
Surface Mount Fixture Diameter (A2) 1.69 in / 43 mm
Flush Mount Mounting Hole Diameter (B) 1.625 in / 41 mm
Flush Mount Mounting Depth (C) 0.76 in / 19 mm
Flush Mount Tweeter Frontal Protrusion (D1) 0.29 in / 7 mm
Surface Mount Tweeter Frontal Protrusion (D2) 0.92 in / 23 mm
