FOCAL 100 IC8-T UL

Kirjeldus

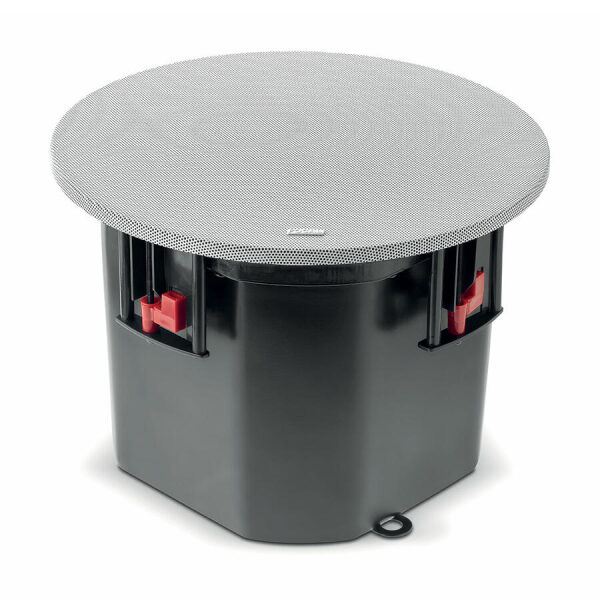

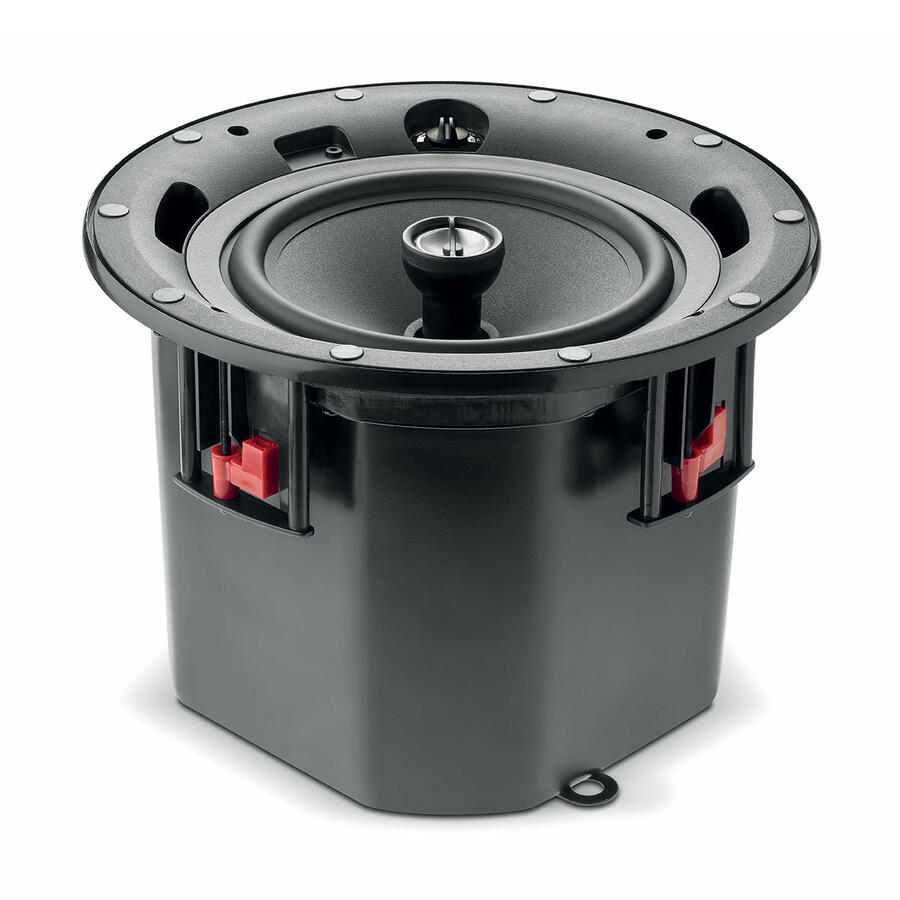

100 ICW8-T is a wall and ceiling loudspeaker designed for large public spaces (hotels, restaurants, shops…). Its 21 cm driver features Polyglass technology for a natural, rich sound, and its low directivity eliminates the "shower effect" of sound for a homogeneous musicality in the space. Like all products in the 100-T Series line, it features an adjustable transformer to adapt its power to 70/100 volt installations.

– Product designed and developed in France by Focal
– 8 Ω or 100 V / 70 V mode by switch
– Low directivity: wide sound dispersion
– UL 1480, UL 2043 certifications for fire protective signaling systems and for fire resistance
– Optional suspended ceiling mounting kit available
– Type: In-ceiling – 2-way coaxial bass-reflex, 100 V / 70 V or 8 Ω installations – Steel back can
– Drivers: 8" (21 cm) Polyglass Midbass, 1" (25 mm) Al inverted dome Tweeter
– Sensitivity (2.83 V / 1 m): 91 dB
– Frequency response (±3 dB): 53 Hz – 23 kHz
– Low frequency point (-6 dB): 48 Hz
– 70 V line power: 8/15/30 W
– 100 V line power: 15/30/60 W
– 8 Ω Recommended amplifier power: 15 – 150 W
– External dimensions (Ø x Depth): 297 x 225 mm
– Cut-out diameter: 265 mm
– Depth from wall: 212 mm
– Ceiling thickness: 0 – 36 mm
