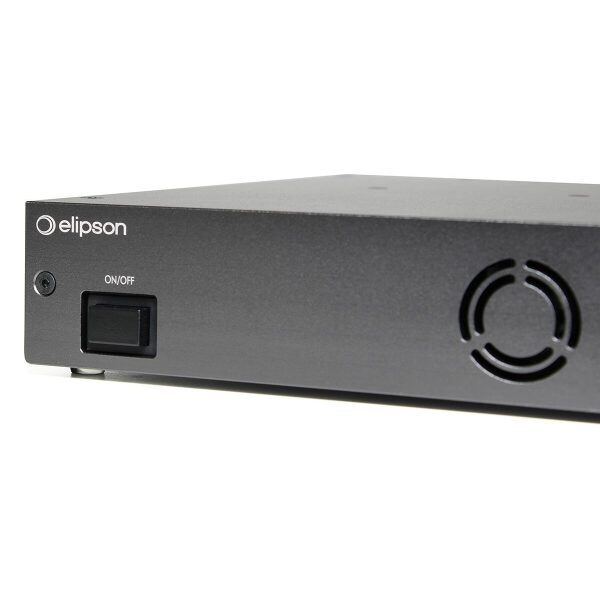

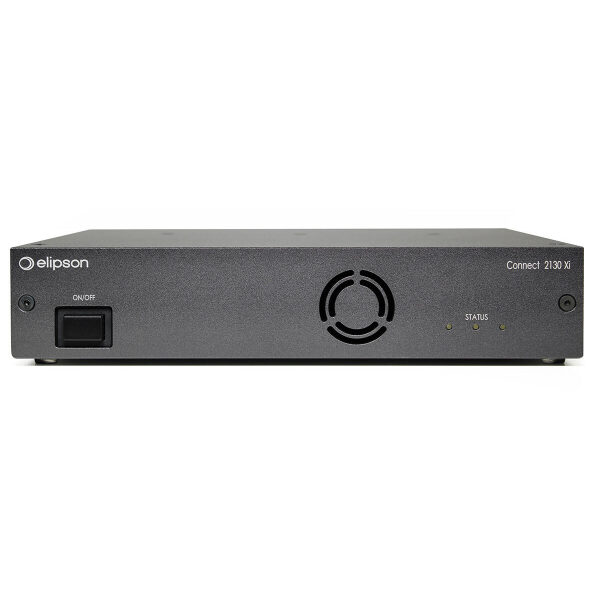

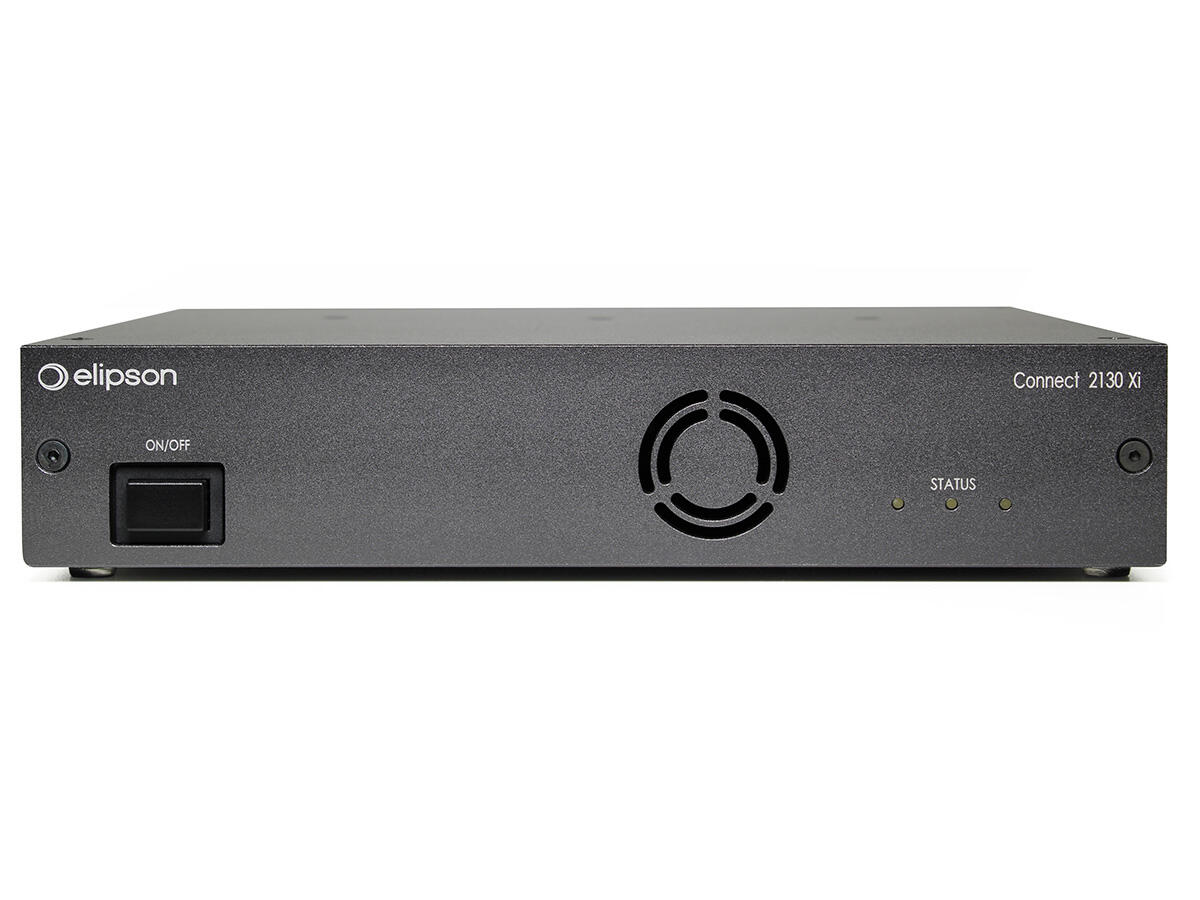

Discover Elipson’s Connect 2130 Xi integrated amplifier, a technological gem designed for both individuals and professionals in the hi-fi industry. Equipped with advanced class D technology with integrated PFC, it offers a power output of 2 x 130 W.

Its built-in streamer, with Bluetooth 5.1, WiFi, and LAN connectivity, as well as Airplay2, Chromecast, UpNp, and DLNA functionality, allows you to stream your favorite music in high quality and wirelessly. The Line-in and RCA inputs offer great flexibility for connecting different types of audio sources, while the sub output provides an additional option for reinforcing bass frequencies.

With dimensions of W215 x D220 x H44.5 mm, the Connect 2130 Xi integrated amplifier can be easily integrated into a standard technical bay with his 100 V mode, allowing for valuable space-saving. Although compact, this amplifier integrates high-end features for exceptional audio performance.

– Type: Connected amplifier
– Technology: Class D with integrated PFC
– Nominal power Wrms into 4 & 8 Ω: 2x 130 W @ THD=1% (clipping) for 2 channels
– Nominal power Wrms / bridge mode into 8 Ω: 250 W / 500 W peak with CF=12 dB
– Harmonic distortion (THD) at 1 W into 8 Ohms: < 0.003% @ 1 kHz
– Intermodulation distortion (IMD SMPTE) at 100 W: < 0.01%
– Power consumption (230 Vac / 120 Vac): 60 W with PF* = 0,96 to Pmax / 8 into 4 Ω, 2 channels
– Analog input: Line-IN – RCA
– Streamer: LAN – WIFI – Bluetooth V5.1 (Airplay2, Chromecast, UpNp, DLNA) Elipson App
– Output: Sub pre out (Cut-off frequency 400 Hz – slope 18 dB / oct)
– Supported sample rate: Hi-Res: 24 Bit – 192 kHz
– Input impedance: 47 kΩ
– Sensitivity (V): 3.5 dBu (unbal.) / 1.15 V
– Pulse rise time (μs): 5 μs at Pmax into 8 Ω
– Bandwidth: 1.6 Hz – 65 kHz @ -3 dB sous 4 Ohms
– Signal-Noise ratio (Dynamic): 119 dBA
– Max operating temperature: 40° C (fan automatic trigger)
– Output configuration: Stereo / Bridge mono / 100V
– Trigger: 5-12 V IN & OUT – mini-jack 3.5 mm
