ELIPSON

Kirjeldus

High Audio performances with large power, elegant and perfect versatility.

– 6 channel – 3 in stereo class D (Total power of 480 W @ 4 Ohms )
– 3 Zones
– 2 Bus inputs
– 2 Bus outputs to connect more A680 multi-channel amplifiers
– Perfect flexibility for audio signal input: Switch for common audio signal (Bus) or individual stereo channel (line) for each zone
– 6 Individual adjustment for voltage input
– Trigger mode / auto mode / automatic Standby mode
– Stereo / Bridge mode (up to 3 x 150 W @ 8 Ohms)

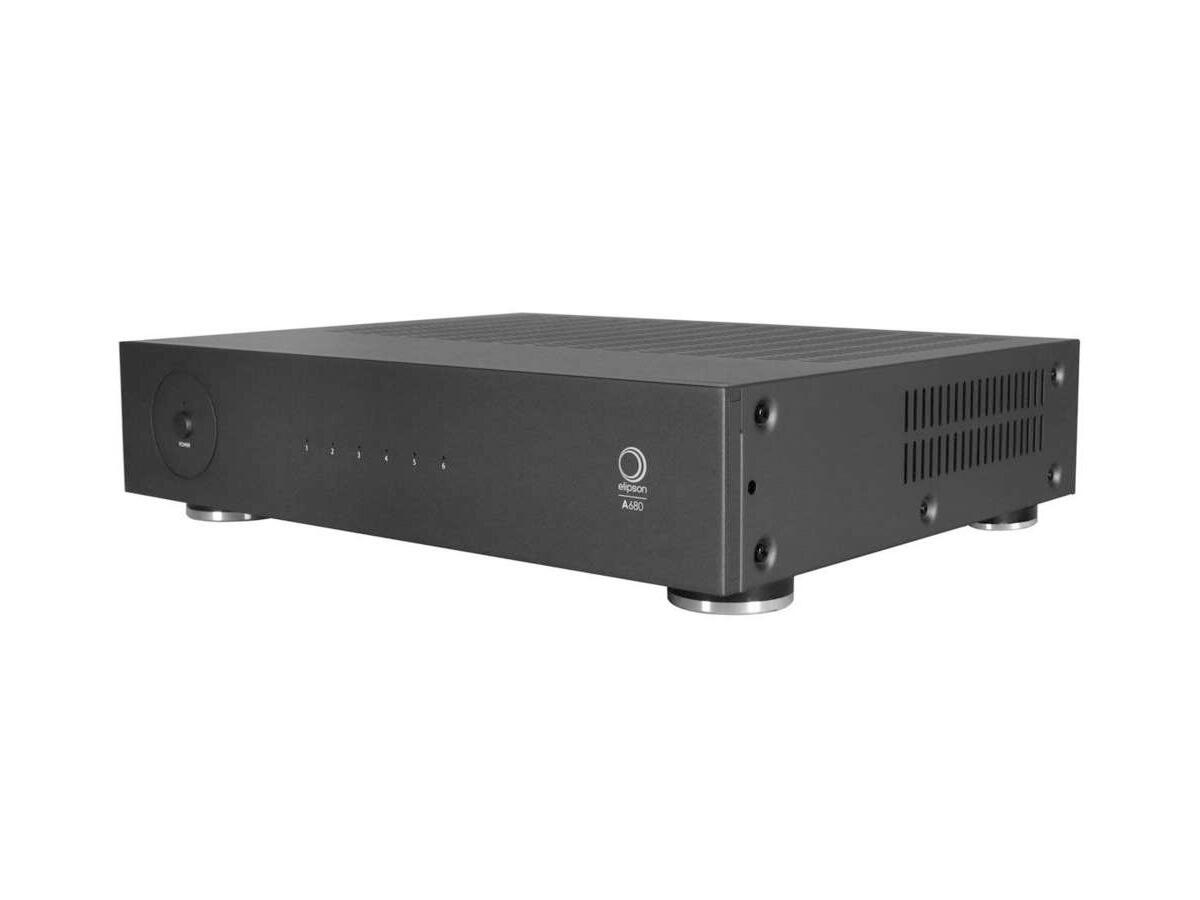

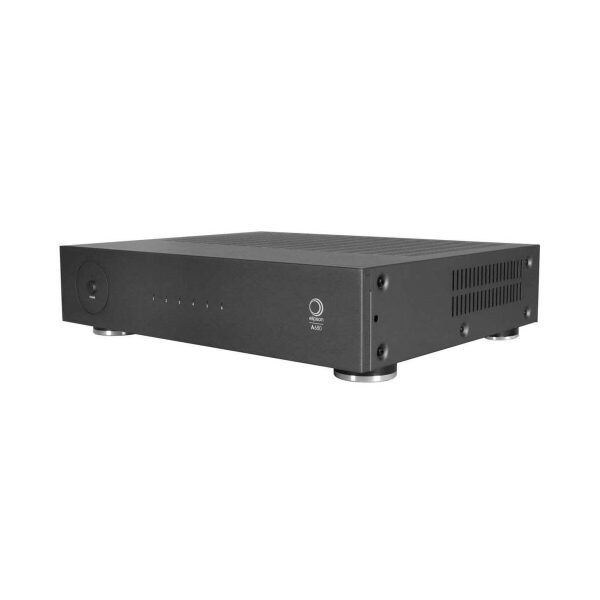

– Type: Multi-channel power amplifier
– Channels: 6 channels, 3 zones
– Output Power: 80 watts / channel @ 4 Ohms
– Bridge mode output power: 150 watts / channel @ 8 Ohms
– Total harmonic distortion: < 1% 1 kHz / 80 W / 4 Ohms
– Channel Separation: > 65 dB / 1 kHz 4 Ohms Zone-Zone
– Signal-to-noise ratio: > 90 dB (19V – A-weighting)
– Frequency response: 20 Hz – 20 kHz (+/- 3 dB)
– Trigger: 12 V IN & OUT
– Damping factor: > 55 (1 kHz)
– Input impedance: > 20 k Ohms
– Input voltage: AC 100 – 120 V 60 Hz / AC 220 – 240 V 50 Hz Auto Switching
– Certifications: CE, CB, NRT, FCC, CE-EMC, ERP
– Dimensions: W430 x H88* x D335 mm (*without feet)
