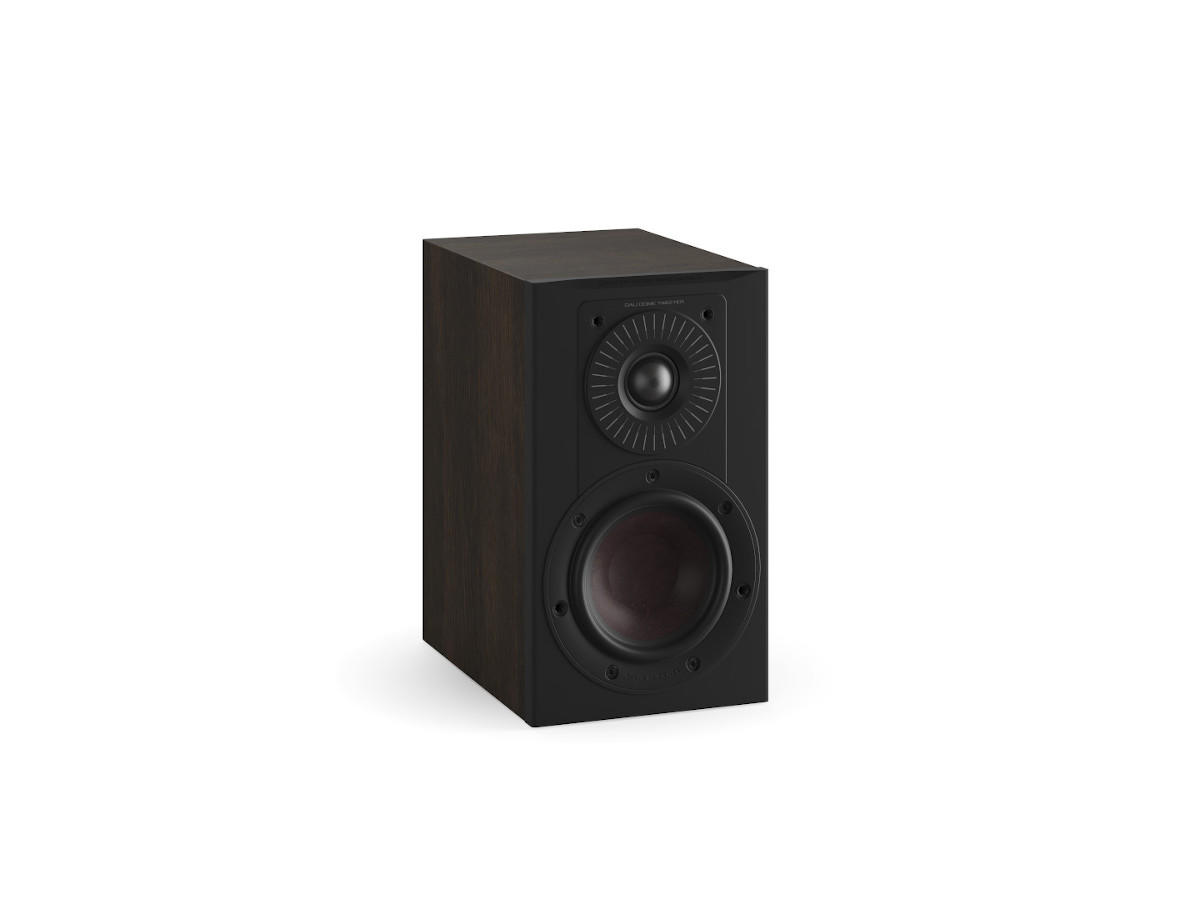

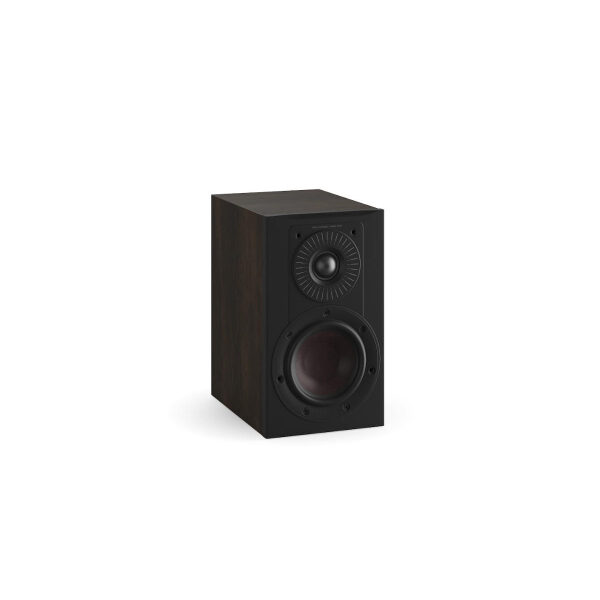

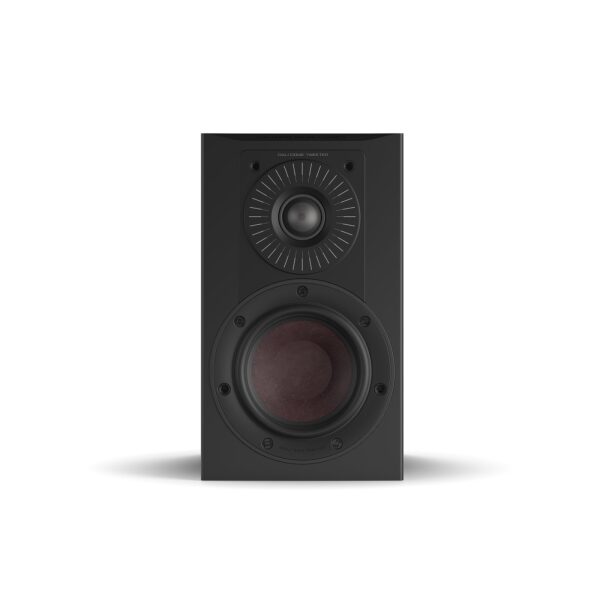

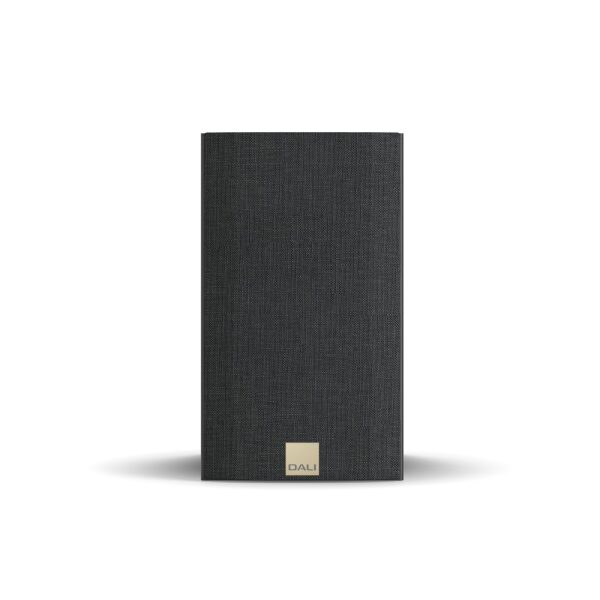

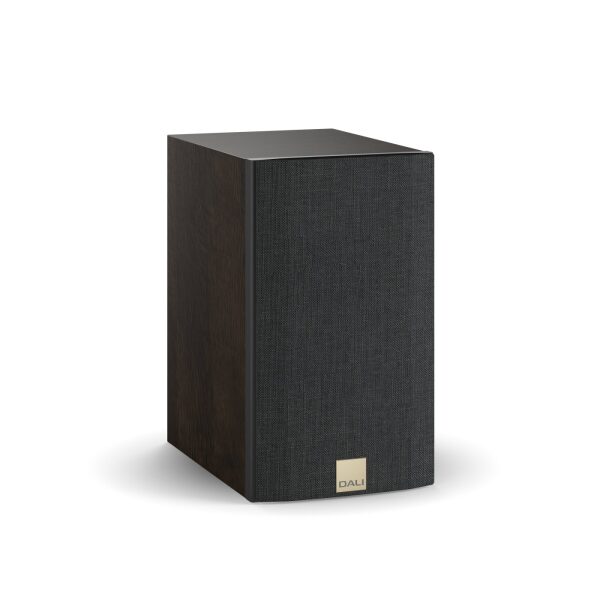

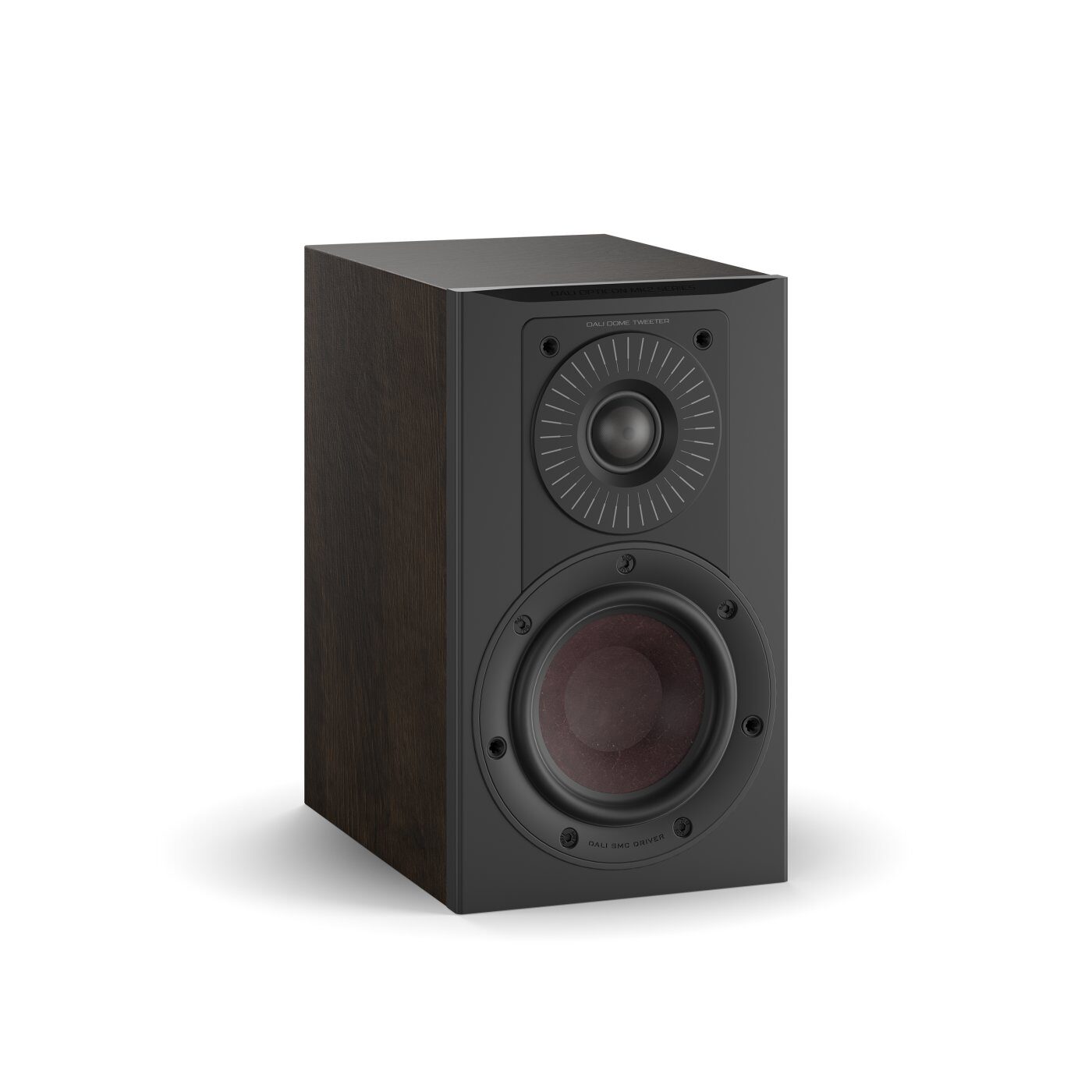

DALI OPTICON 1 MK2 TOBACCO OAK

Kirjeldus

The OPTICON 1 MK2 is a compact stand mount
speaker designed to be installed close to room
boundaries or wall mounted in modest listening
spaces. Its drivers comprise a 4¾” Wood Fibre
diaphragm, SMC magnet bass/midrange unit and a
newly designed 29mm soft dome tweeter derived
from that employed in the CALLISTO series. The
Dual Flare reflex loaded 5 Litre enclosure enables
the OPTICON 1 MK2 to deliver remarkable bass
performance for its size that integrates perfectly
with the inherent midrange and high frequency
quality of its drivers. The OPTICON 1 MK2 is
supplied with a simple keyhole slot wall mounting
bracket.

– Frequency range (+/-3 dB) [Hz] 62 – 25.000
– Sensitivity (2.83V/1m) [dB] 85
– Nominal Impedance [ohm] 4
– Maximum SPL [dB] 105
– Recommended Amplifier Power [Watt] 25-100
– Crossover frequency [Hz] 3.000
– Crossover principle 2-way
– High frequency driver 1 x 29 mm soft dome
– Low Frequency / mid-range Driver(s) 1 x 4¾”
– Enclosure type Bass reflex
– Bass Reflex Tuning Frequency [Hz] 60

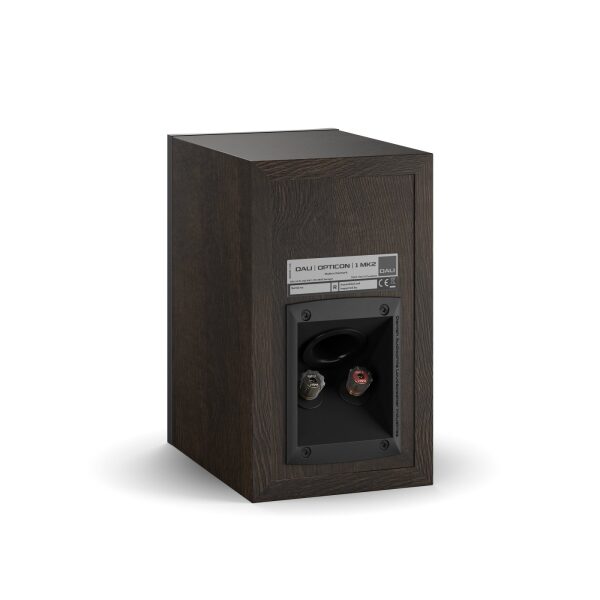

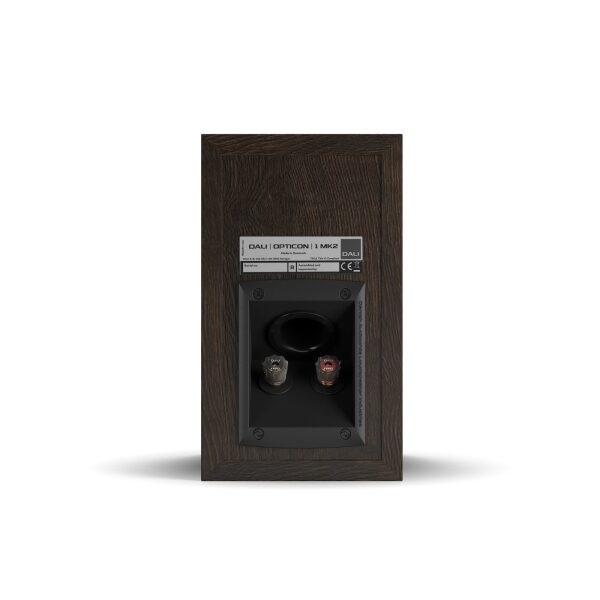

– Connection Input(s) Single
– Recommended placement Stand/Shelf/Wall
– Recommended distance from rear wall to speaker’s rear panel [cm] lut.80
– Dimensions (H x W x D) [mm] 261 x 152 x 231
– Dimensions (H x W x D) [inches] 10.28 x 6.0 x 9.1
– Weight [kg/lb] 4.9/ 10.8
– Included accessories Rubber feet, manual
