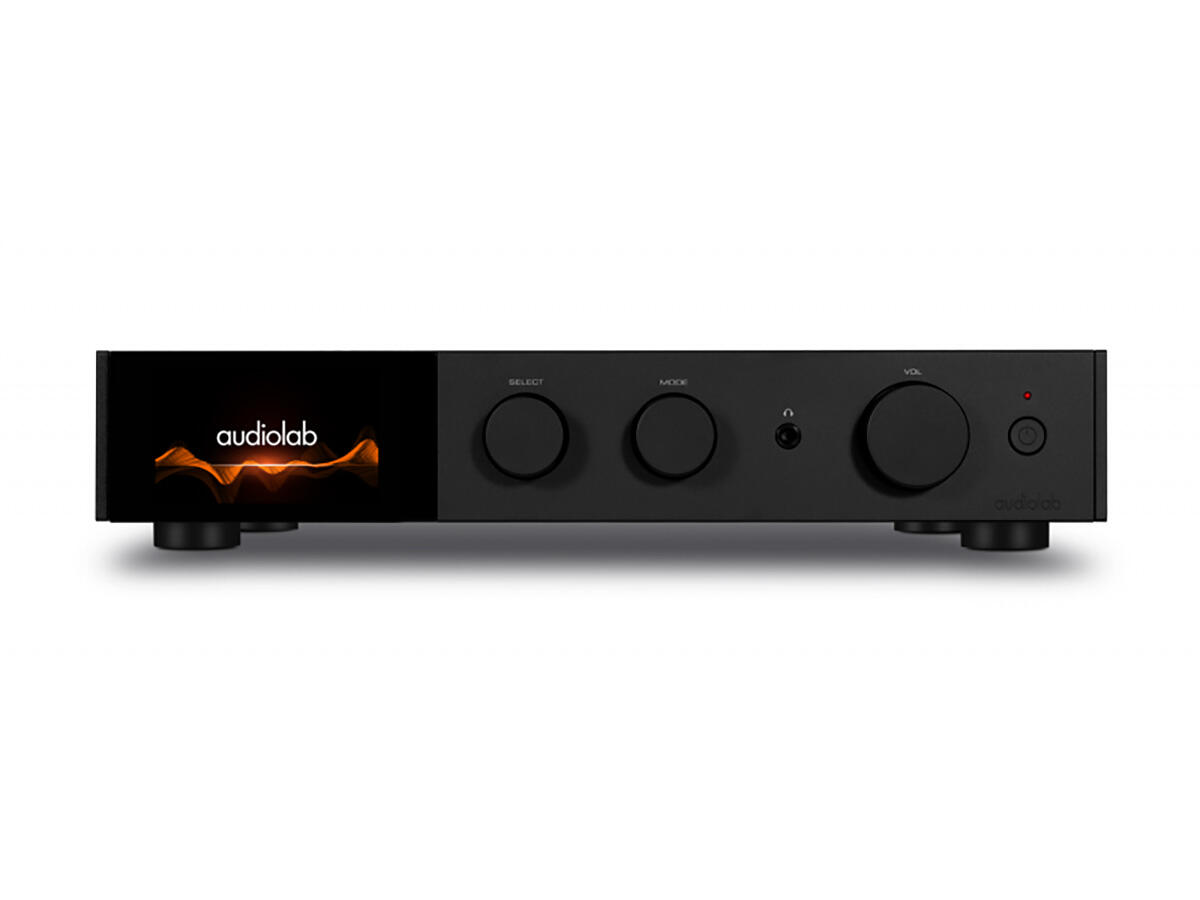

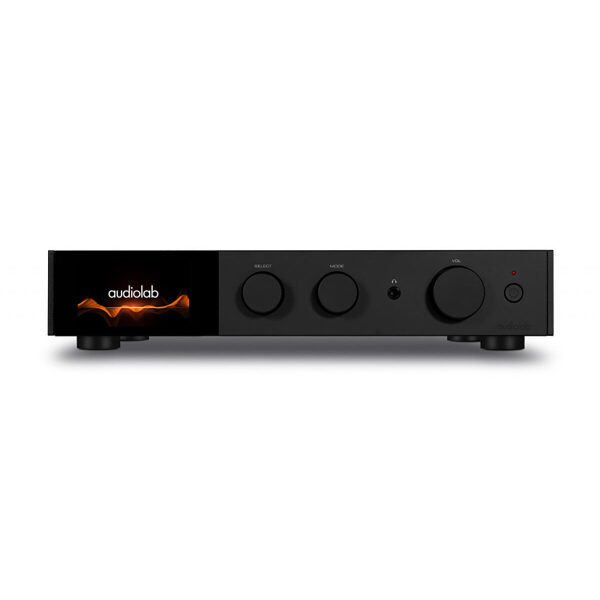

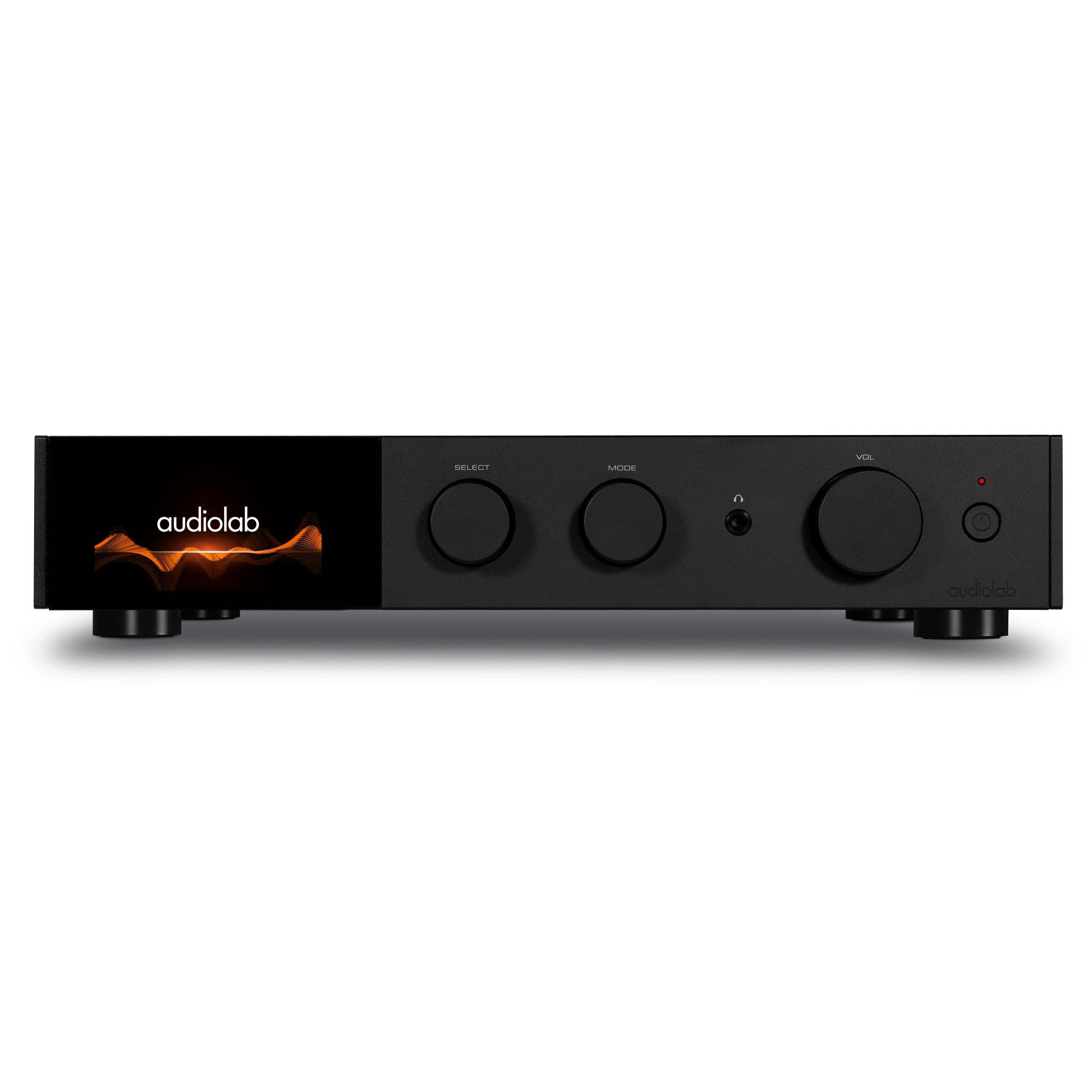

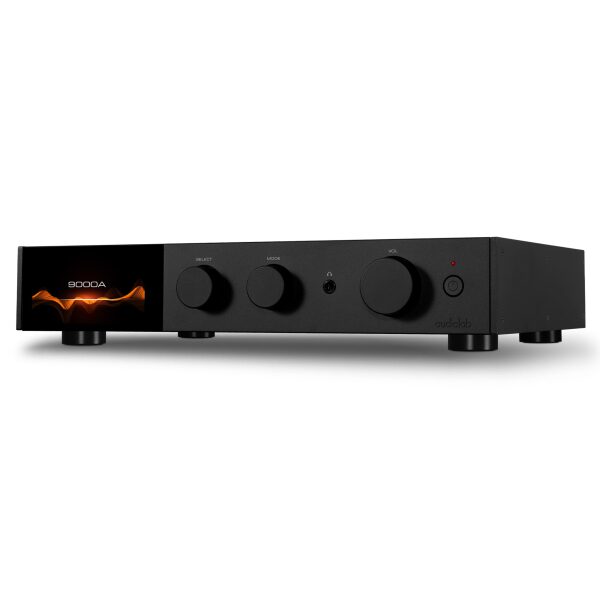

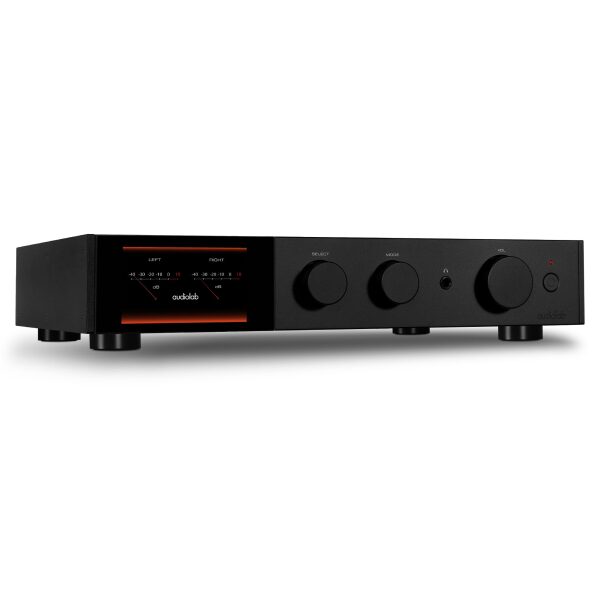

AUDIOLAB 9000 A ALU-BLACK

Kirjeldus

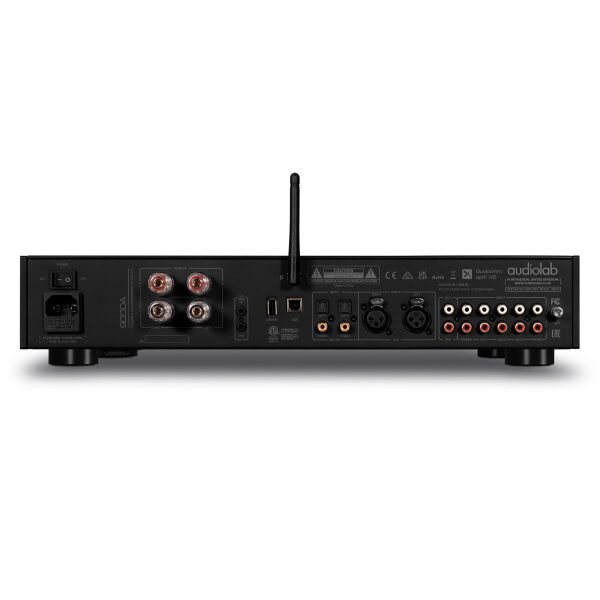

– Inputs: 3x Analogue, 1x XLR, 1x Phono (MM), 1x Power Amplifier, 2x SPDIF (Coax), 2x SPDIF (Optical), 1x PC USB (USB B), 1x Bluetooth (aptX/aptX HD/LDAC), 1x 12V Trigger
– Outputs: 1x PRE Amplifier,1x Stereo Speaker, 1x Headphone, 1x 12V Trigger
– Sampling Frequency: Optical / Coaxial: 44.1kHz-192kHz;
– PC USB: 44.1kHz-768kHz (PCM) / DSD64, DSD128, DSD256, DSD512
– Gain (max.): +6dB (Line), +53dB (Phono MM)
– Input Sensitivity: 1Vrms (Line, Volume = 0dB); 2Vrms (XLR, Volume = 0dB), 4.4mV (Phono MM, Volume=0dB)
– Input Impedance: 10K (Line); 47K // 100pF (Phono MM)
– Total Harmonic Distortion (THD): < 0.0004% (1kHz @ 2V, Volume = 0dB)
– Frequency Response: 20Hz-20kHz (+/-0.1dB)
– Output Voltage: 2.3V max. (Volume = 0dB)
– Output Impedance: 120 ohms
– Signal-to-Noise Ratio: > 110dB (Line & XLR, A-weighted); > 80dB (Phono MM, A-weighted)
– D to A Converter: ES9038Pro
– Total Harmonic Distortion (THD): < 0.001% (1kHz @ 0dBFS)
– Output Level (0dBFS, 1kHz): 2.1Vrms
– Max. Sampling Frequency: Optical, Coaxial: 192kHz;
– PC USB: PCM768kHz, DSD512
– Signal-to-Noise Ratio (S/N): > 117dB (A-weighted)
– Rated Power Output: 2x 100W (8 ohms, THD<1%); 2x 160W (4 ohms, THD<1%)
– Frequency Response: 20Hz-20kHz (+/-0.3dB)
– Total Harmonic Distortion (THD): <0.002% (1kHz @ 50W / 8 ohms)
– Input Sensitivity: 1Vrms
– Signal-to-Noise Ratio (S/N): > 110dB (A-weighted)
– Max. Output Current: 15A
