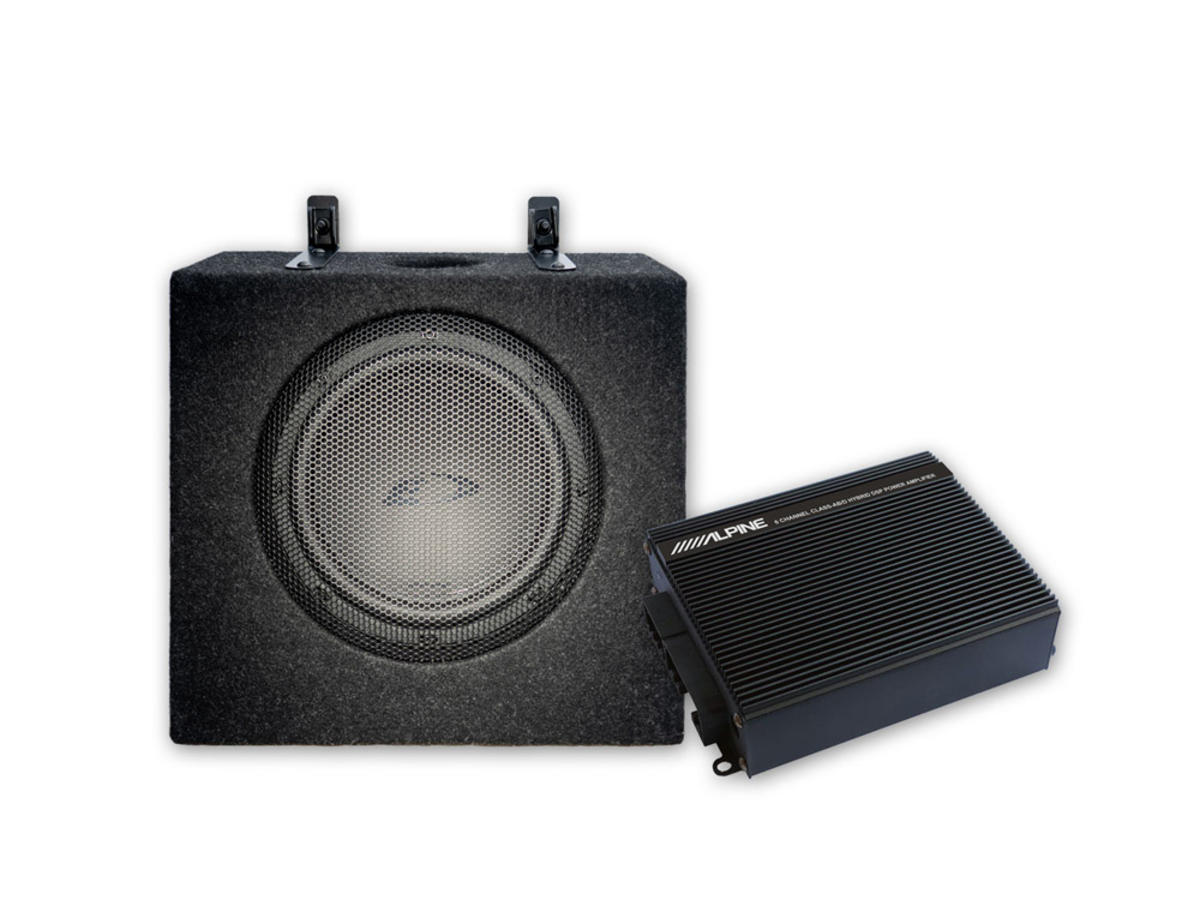

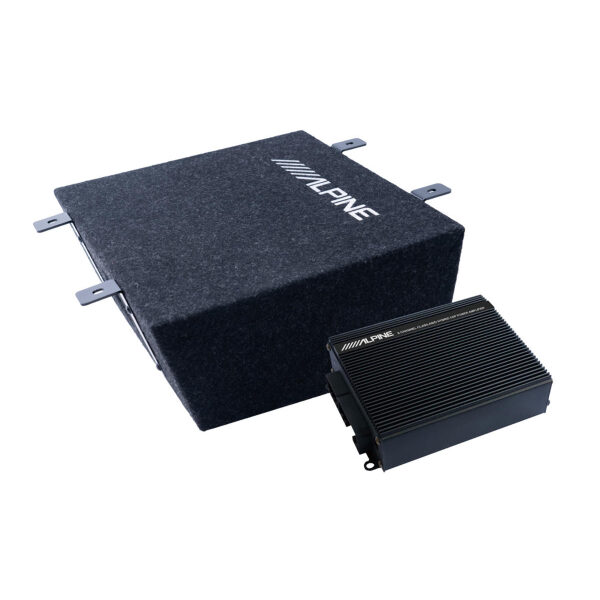

ALPINE T6/T6.1 SUB & DSP-AMP (RCA)

Kirjeldus

DSP Amplifier

– 6-Channel DSP Amplifier
– 550 Watt max power output
– 4x 28 Watts + 2x 55 Watt RMS (<10% THD, 4Ohm)
– Class AB (channel 1-4) and Class D (channel 5+6) amplification circuits
– 4x low level inputs
– Measurements: 100mm x 40mm x 122mm (134mm with connectors plugged in)
– Pre-programmed VW T6.1 / T6 sound settings with digital time correction
– Adjustments for LHD or RHD vehicles
– Designed to work with an Alpine or other aftermarket radio featuring RCA pre-amp outputs

Subwoofer

– 20cm (8”) dual voice coil subwoofer (2 Ohm + 2 Ohm)
– 180 Watt peak power handling / 60 Watt RMS power handling
– Frequency response: 34Hz – 1,5kHz
– Includes installation brackets for VW T6.1 / T6 under-seat installation
– Measurements: 355mm x 330mm x 170mm
– Sensitivity: 91dB 1W/W
– Included subwoofer grill
