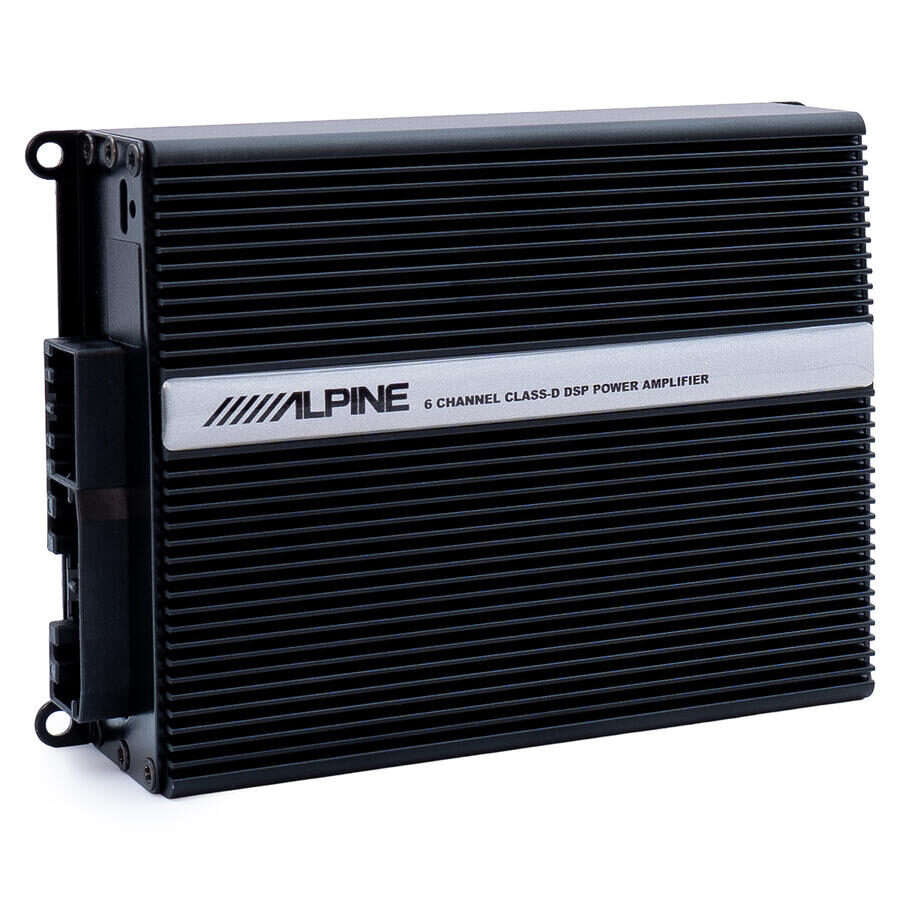

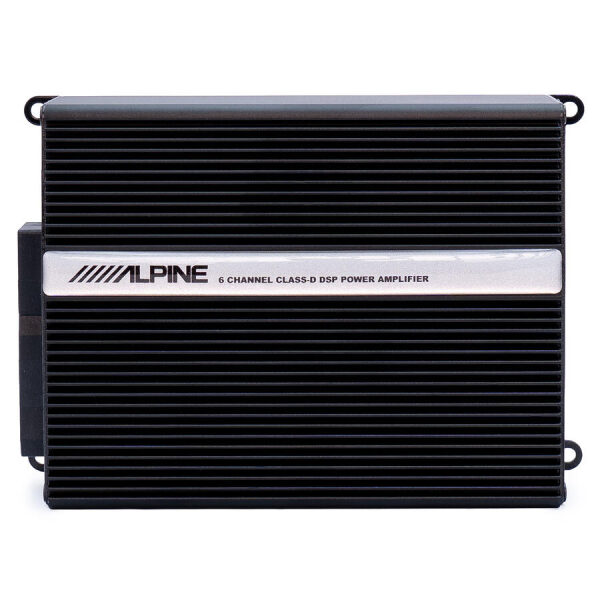

ALPINE PDA-S560DSP

Kirjeldus

– 6-Channel DSP Class D Amplifier
– RMS Power Ratings CH 1-4 into 4 Ω: 4x 80 W RMS (14.4 V at 1% THD+N)
– RMS Power Ratings CH 5-6 into 2 Ω: 2x 120 W RMS (14.4 V at 1% THD+N)
– 4x high power or low (RCA) inputs
– Power Requirement: 12 V – 24 V
– Adjustments for LHD or RHD vehicles
– Designed to work with retrofit radio with pre out (RCA)
– Optional RCA in putcable: KWE-S560
– Designed to work with original OEM-radios (high-power)
– PC-Tool for DSP-tuning
– Measurements: 142 x 40 x 122 mm (176 mm with connectors plugged in)
