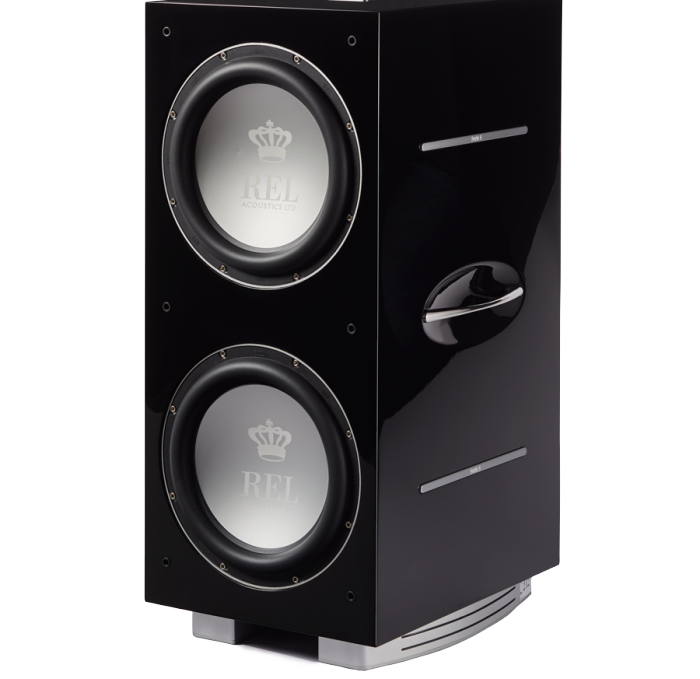

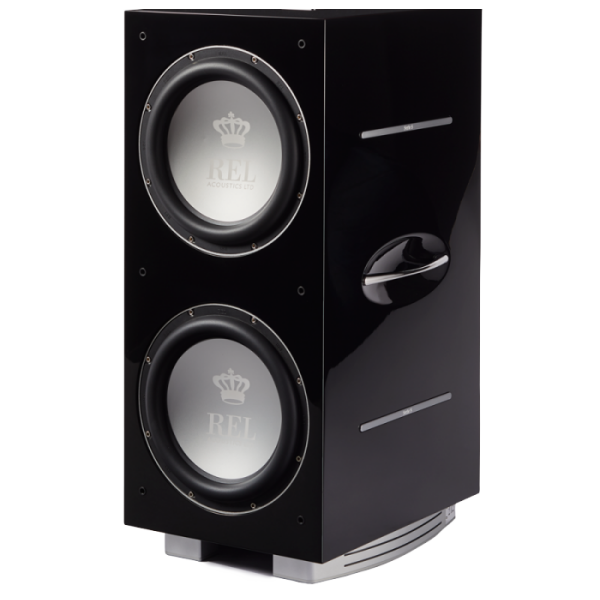

REL ACOUSTICS 212/SX subwoofer

Kirjeldus

Specifications

Type
(2) Front-firing active drivers, (1) rear passive, (1) down-firing passive

Active Driver Size & Material
(2) 12 in. (300mm) long throw, Continuous CastAlloy™ cone structure, die cast alloy chassis

Passive Radiator Size & Material
Rear: 12 in. (300mm) Continuous CastAlloy™ cone structure, die cast alloy chassis; Down: 12 in. (300mm) Carbon/Carbon flat cone structure, steel chassis

Low Frequency Extension
-6dB at 18 Hz

Input Connectors
High Level Neutrik Speakon, Low Level (2) RCA, (1) LFE RCA, (1) LFE XLR

Output Connectors
High Level Neutrik Speakon, (1) LFE RCA or (1) LFE XLR**

Power Output
1,000 watts (RMS)

Amplifier Type
NextGen 5 Class D

Wireless Capability
REL AirShip II (sold separately)

Dual Parametric Filter
N/A

Protection System
Fully Electronic Set Safe
Yes

D.C. Fault
Yes

Output Short
Yes

Mains Input Voltage
220-240 volts, 1120-120 volts for certain markets

Fuses
7 Amp semi delay 220 volts operation, 15 Amp semi delay 120 volts operation
