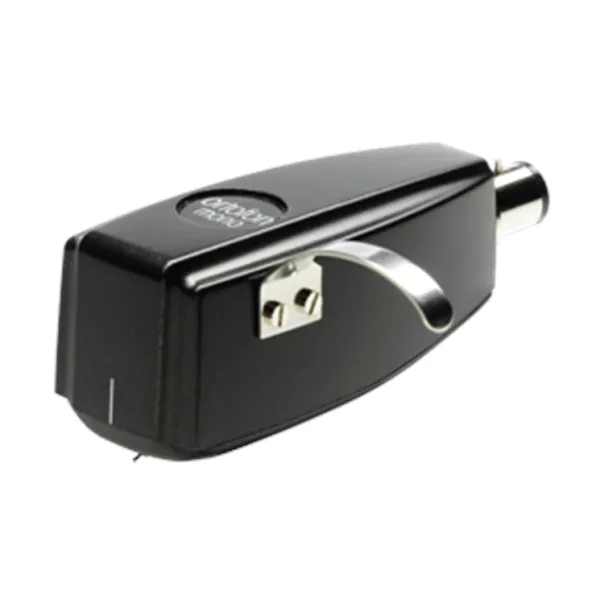

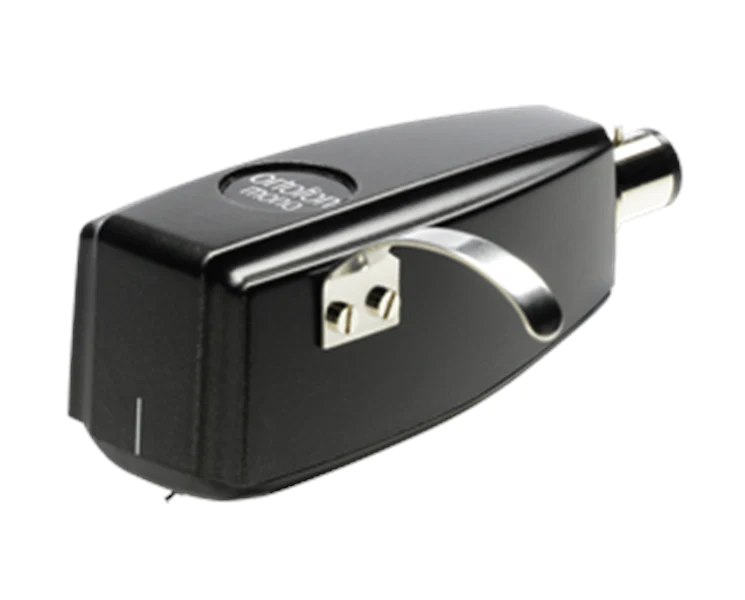

Ortofon SPU Mono G MKII MC helipea

Kirjeldus

Output voltage at 1 kHz, 5cm/sec: 3 mV
Frequency response 20 Hz – 20 kHz: 2 / -1 dB
Tracking ability at 315Hz at recommended tracking force: 70 µm
Compliance, dynamic, lateral: 12 µm/mN
Stylus type: Spherical
Stylus tip radius: R 25 µm
Tracking force range: 3.0-5.0 g (30-50 mN)
Tracking force, recommended: 4.0 g (40 mN)
Tracking angle: 20°
Internal impedance, DC resistance: 100 ohm
Recommended load impedance: 47 kohm
Coil wire material: High Purity Copper (OFC)
Cartridge body material: Ground wood and resin composite
Cartridge colour: Black matte
Cartridge weight: 28 g
