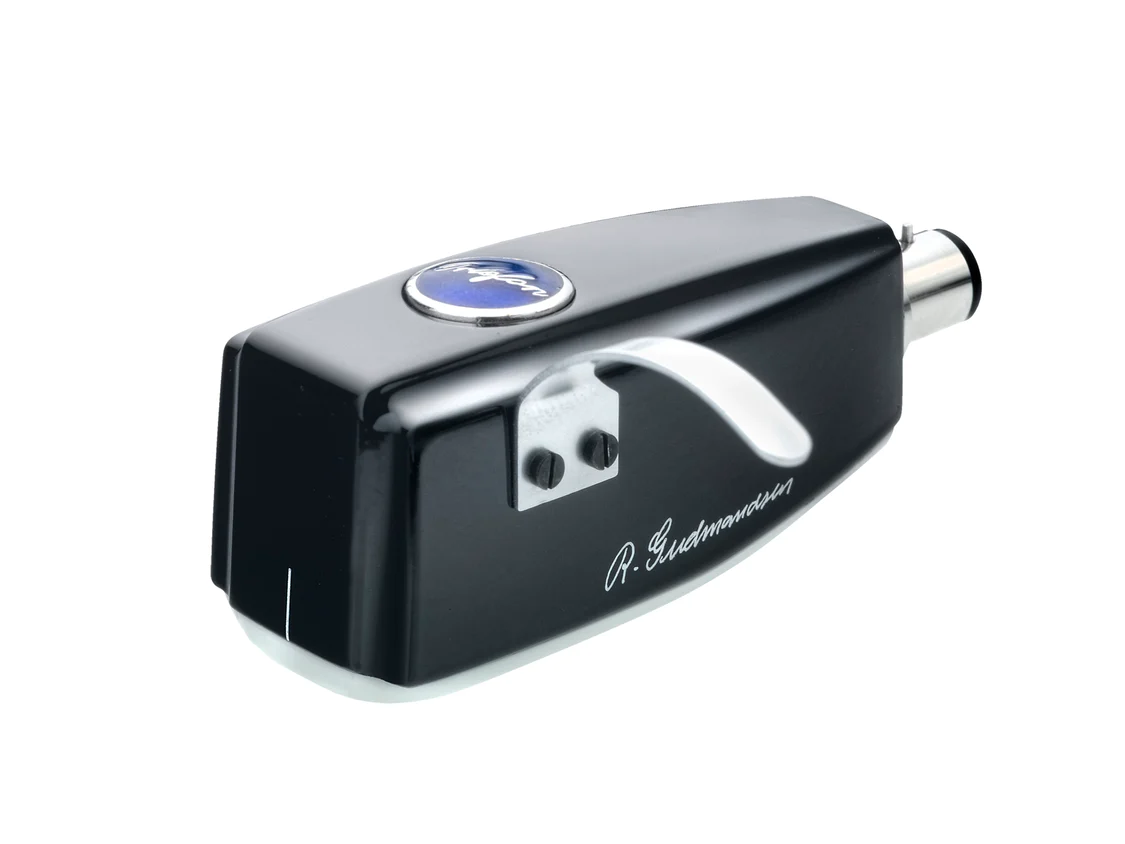

Ortofon SPU Meister Silver G MK II

Kirjeldus

Channel balance at 1 kHz: 1 dB
Output voltage at 1 kHz, 5cm/sec: 0.3 mV
Channel separation at 1 kHz: 20 dB
Channel separation at 15 kHz: 10 dB
Frequency response 20 Hz – 20 kHz: 2/-1 dB
Tracking ability at 315Hz at recommended tracking force: 70 μm
Compliance, dynamic, lateral: 8 μm/mN
Stylus type: Nude Elliptical
Stylus tip radius: r/R 8/18 μm
Tracking force range: 3.0-5.0 g (30-50 mN)
Tracking force, recommended: 4.0 g (40 mN)
Tracking angle: 20º
Internal impedance, DC resistance: 3 ohm
Recommended load impedance: 10 ohm
Coil wire material: Silver, 6-nines
Cartridge body material: Ground wood and resin composite
Cartridge colour: Shiny Black
Cartridge weight: 28 grams
