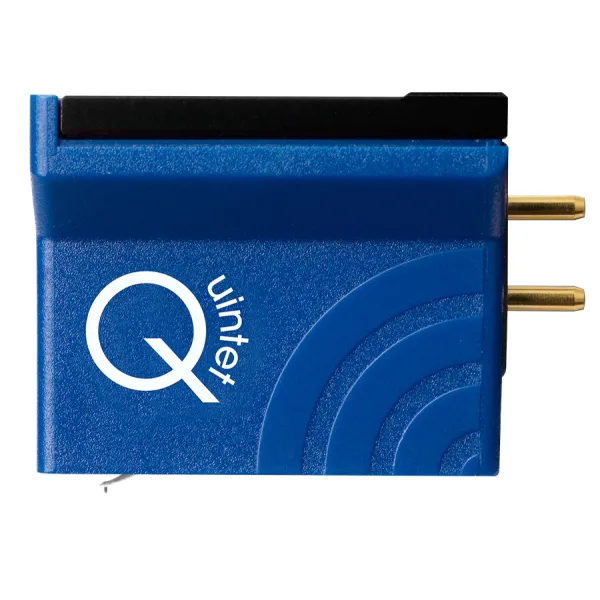

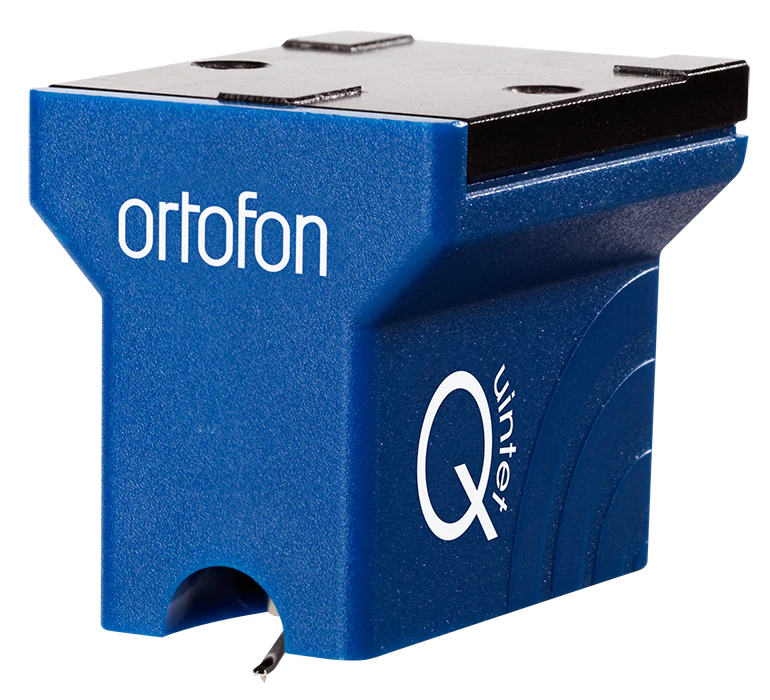

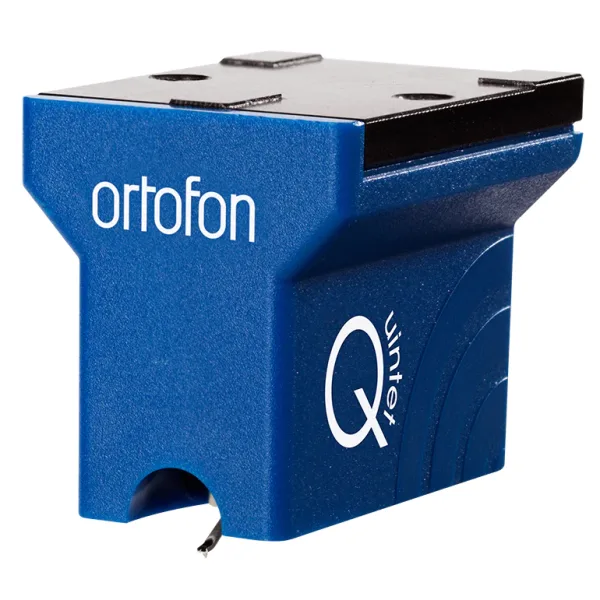

Ortofon Quintet Blue

Kirjeldus

Channel balance at 1 kHz: < 1.5 dB
Output voltage at 1 kHz, 5cm/sec: 0.5 mV
Channel seperation at 1 kHz: > 21 dB
Channel seperation at 15 kHz: > 14 dB
Frequency response 20 Hz – 20 kHz: +/- 2.5 dB
Tracking ability at 315Hz at recommended tracking force: 70 µm
Compliance, dynamic, lateral: 15 µm/mN
Stylus type: Nude Elliptical
Stylus tip radius: r/R 8/18 µm
Tracking force range: 2.1-2.5 g
Tracking force, recommended: 2.3 g
Tracking angle: 20°
Internal impedance, DC resistance: 7 Ohm
Recommended load impedance: > 20 Ohm
Coil wire material: Pure 4-nines silver
Cartridge body material: PC/Alu
Cartridge colour: Blue
Cartridge weight: 9 g
