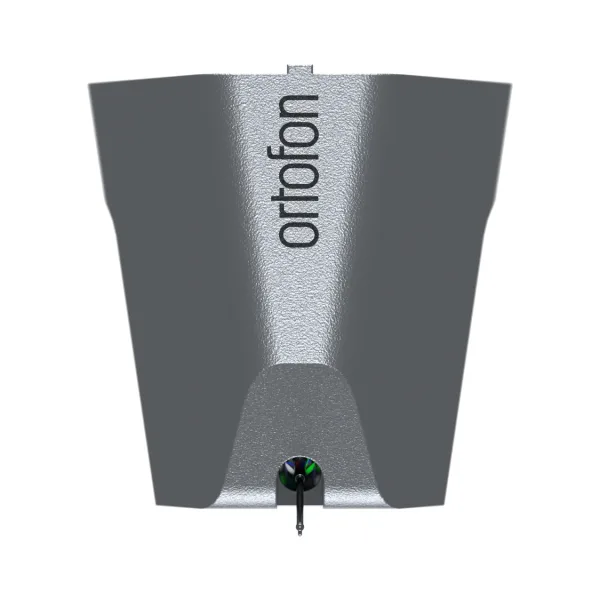

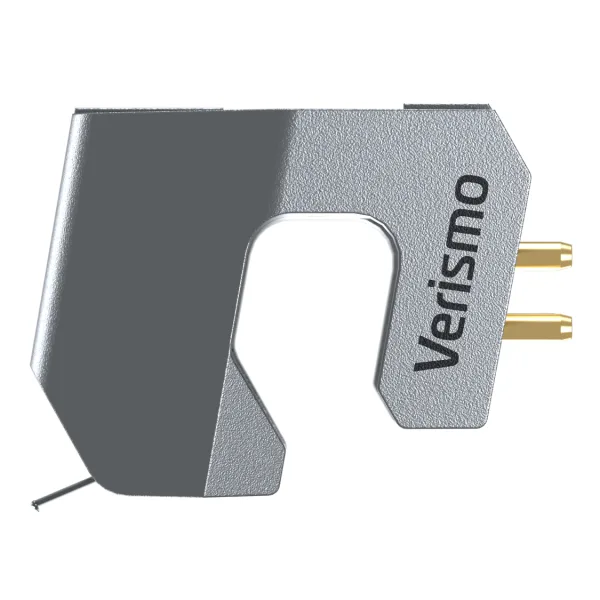

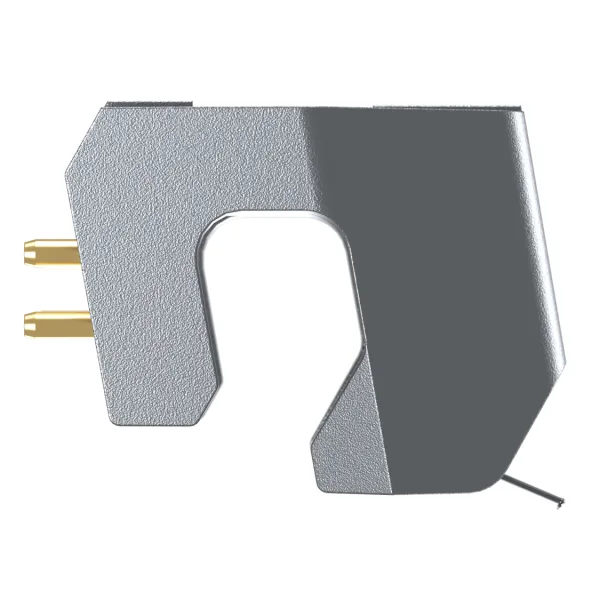

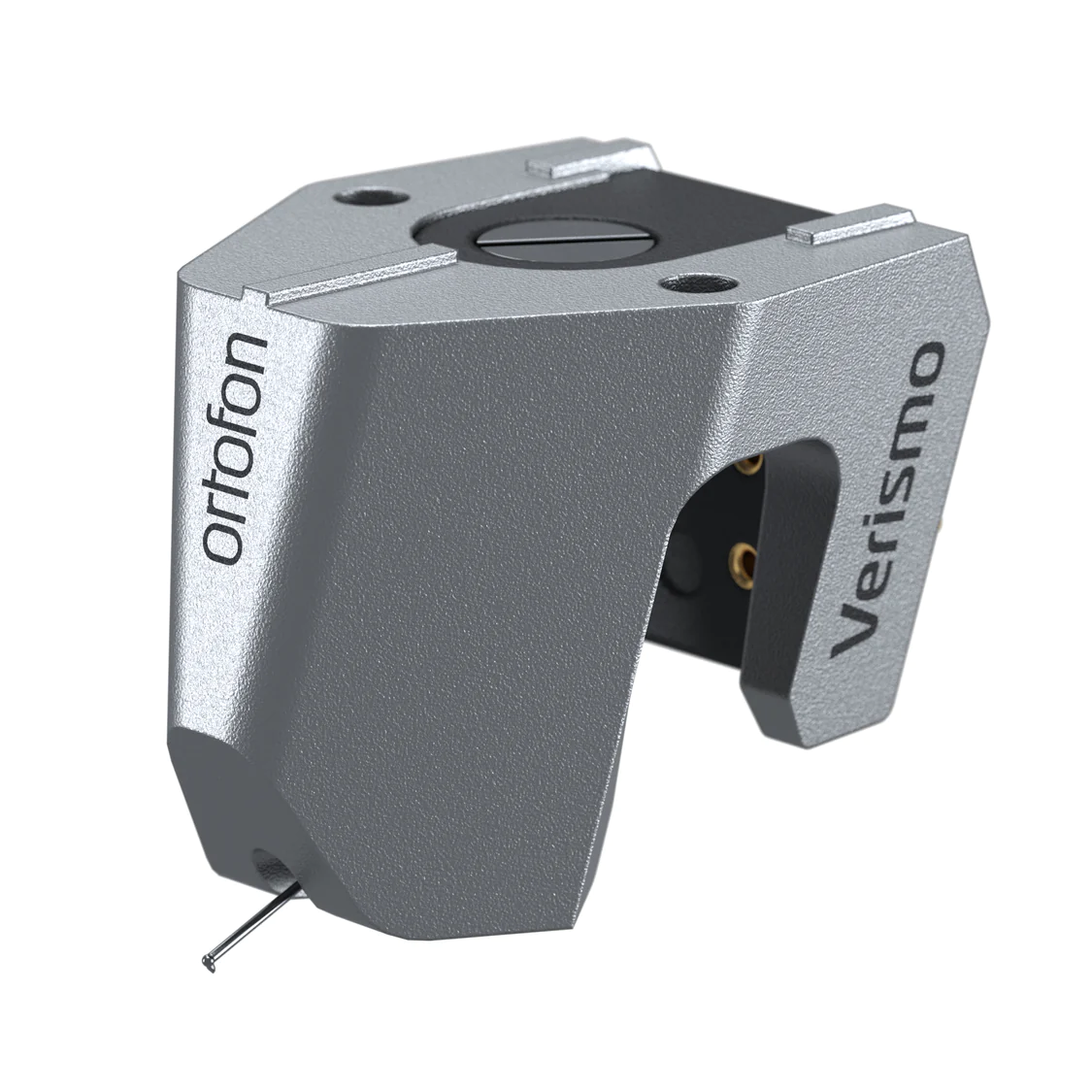

Ortofon MC Verismo

Kirjeldus

Output voltage at 1 kHz, 5cm/sec: 0.2 mV, 0.5 dB
Channel separation at 1 kHz: 25 dB
Channel separation at 15 kHz: 20 dB
Frequency response 20 Hz – 20 kHz: +/- 2 dB
Tracking ability at 315Hz at recommended tracking force: 80 μm
Compliance, dynamic, lateral: 11 μm/mN
Stylus type: Special polished Nude Ortofon Replicant 100 on Diamond cantilever
Stylus tip radius: r/R 5/100 μm
Tracking force range: 2.5 – 2.8 g
Tracking force, recommended: 2.6 g
Tracking angle: 23°
Internal impedance, DC resistance: 6Ω
Recommended load impedance: >10 Ω
Cartridge body material: SLM Titanium
Cartridge colour: Silver/Black
Cartridge weight: 17.5 g
