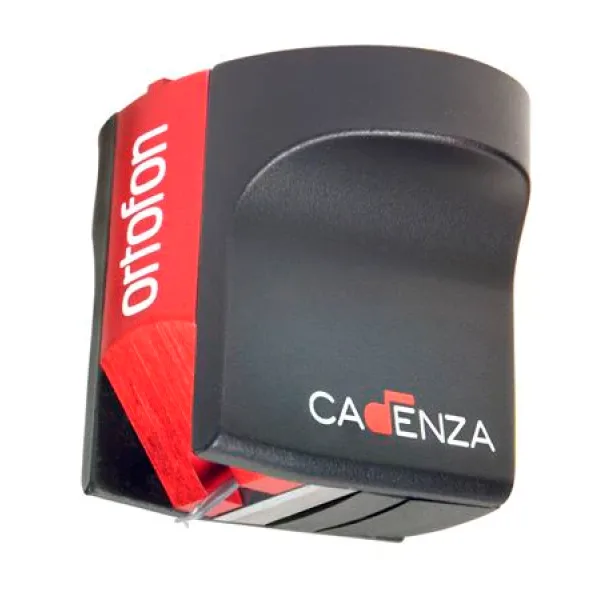

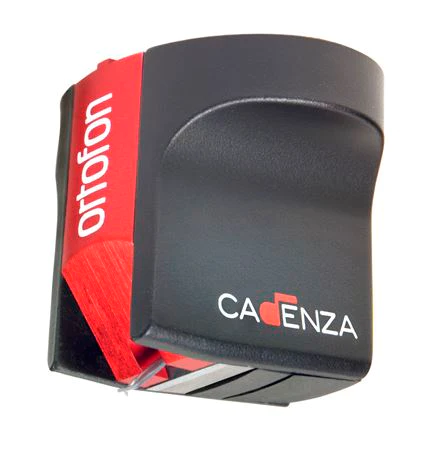

Ortofon MC Cadenza Red

Kirjeldus

Channel balance at 1 kHz: < 1.5 dB
Output voltage at 1 kHz, 5cm/sec: 450 μV
Channel separation at 1 kHz: > 23 dB
Channel separation at 15 kHz: > 15 dB
Frequency response 20 Hz – 20 kHz: +3/-1 dB
Tracking ability at 315Hz at recommended tracking force: 80 μm
Compliance, dynamic, lateral: 12 μm/mN
Stylus type: Nude fine line on Al. cantilever
Stylus tip radius: r/R 8/40
Tracking force range: 2.2-2.7 g
Tracking force, recommended: 2.5 g
Tracking angle: 20°
Internal impedance, DC resistance: 5 Ohm
Recommended load impedance: 50-500 Ohm
Cartridge body material: Stainless steel Aluminium
Cartridge colour: Red/Black
Cartridge weight: 10.7 g
