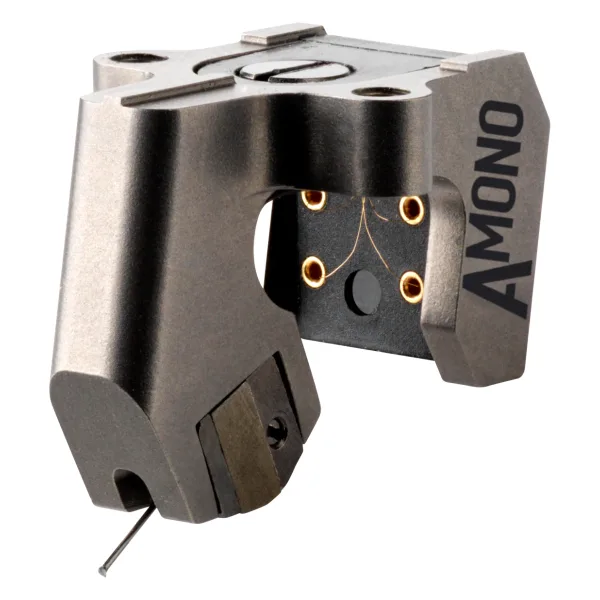

Ortofon MC A Mono

Kirjeldus

Output voltage at 1 kHz, 5cm/sec: 0.2 mV
Frequency response 20 Hz – 20 kHz: +2 dB / -1 dB
Tracking ability at 315Hz at recommended tracking force: 90 µm
Compliance, dynamic, lateral: 13 µm/mN
Stylus type: Special polished Nude Ortofon Replicant 100 on Boron Cantilever
Stylus tip radius: r/R 5/100 µm
Tracking force range: 2.0-2.5 g (20-25 mN)
Tracking force, recommended: 2.3 g (23 mN)
Tracking angle: 23°
Internal impedance, DC resistance: 7 Ohm
Recommended load impedance: > 10 Ohm
Coil wire material: Aucurum
Cartridge body material: SLM Titanium
Cartridge colour: Silver
Cartridge weight: 6 grams
