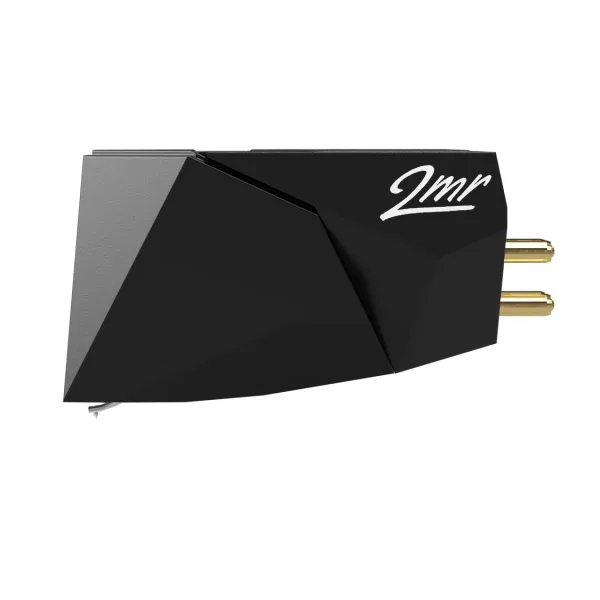

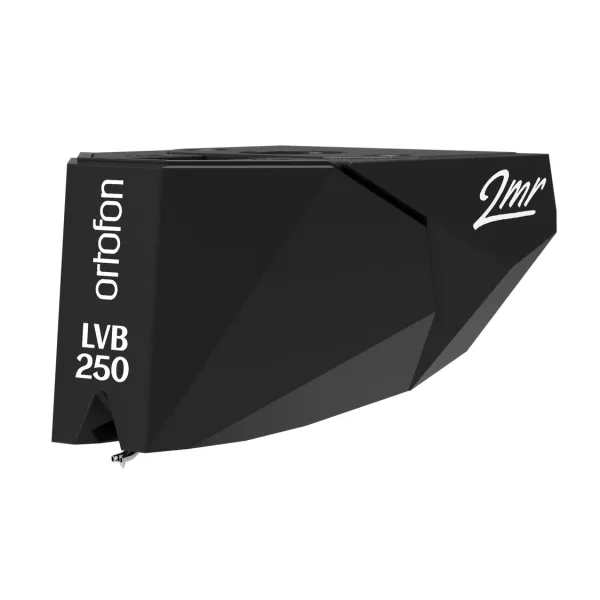

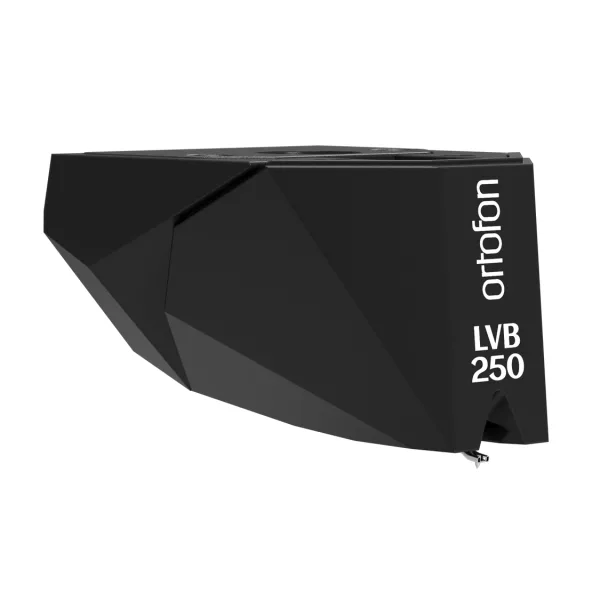

Ortofon 2MR Black LVB 250

Channel balance at 1 kHz: < 1 dB

Output voltage at 1 kHz, 5cm/sec: 5 mV

Channel seperation at 1 kHz: > 27 dB

Channel seperation at 15 kHz: 15 dB

Frequency response 20 Hz – 20 kHz: + 2 / – 1 dB

Tracking ability at 315Hz at recommended tracking force: 80 µm

Compliance, dynamic, lateral: 22 µm/mN

Stylus type: Nude Shibata on Boron cantilever

Stylus tip radius: r/R 6/50 µm

Tracking force range: 1.5-1.7 g (15-17 mN)

Tracking force, recommended: 1.6 g (16 mN)

Tracking angle: 20°

Internal impedance, DC resistance: 1.2 kOhm

Cartridge colour: Black

Cartridge weight: 6 g

Reccomended load resistance: 47 kOhm

Internal inductance: 630 mH

Stylus colour: Black

Recommended load capacitance: 47 kOhm
