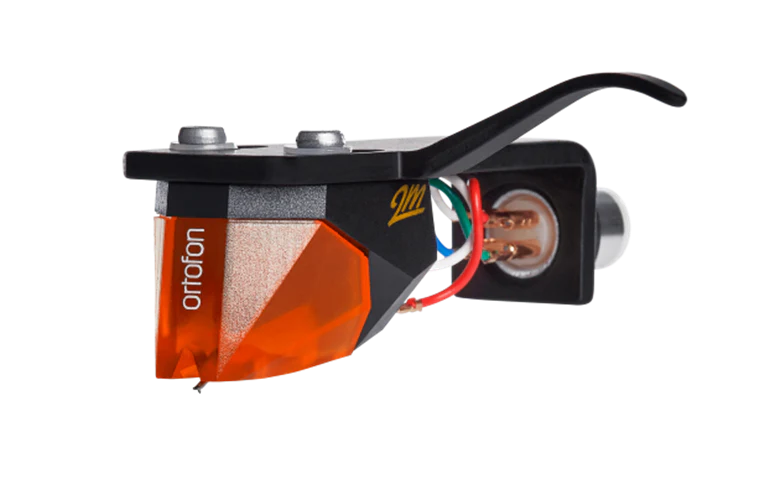

Ortofon 2M Bronze eelmonteeritud

Kirjeldus

Channel balance at 1 kHz: 1 dB
Output voltage at 1 kHz, 5cm/sec: 5 mV
Channel separation at 1 kHz: 26 dB
Channel separation at 15 kHz: 15 dB
Frequency response 20 Hz – 20 kHz: 2 / -0 dB
Tracking ability at 315Hz at recommended tracking force: 80 µm
Compliance, dynamic, lateral: 22 µm/mN
Stylus type: Nude Fine Line
Stylus tip radius: r/R 8/40 µm
Tracking force range: 1.4-1.7 g (14-17 mN)
Tracking force, recommended: 1.5 g (15 mN)
Tracking angle: 20°
Internal impedance, DC resistance: 1.2 kOhm
Cartridge colour: Black/Bronze
Cartridge weight: 7.2 g
Premounted cartridge weight: 16.7 g
Recommended load resistance: 47 kOhm
Internal inductance: 630 mH
Recommended load capacitance: 150-300 pF
