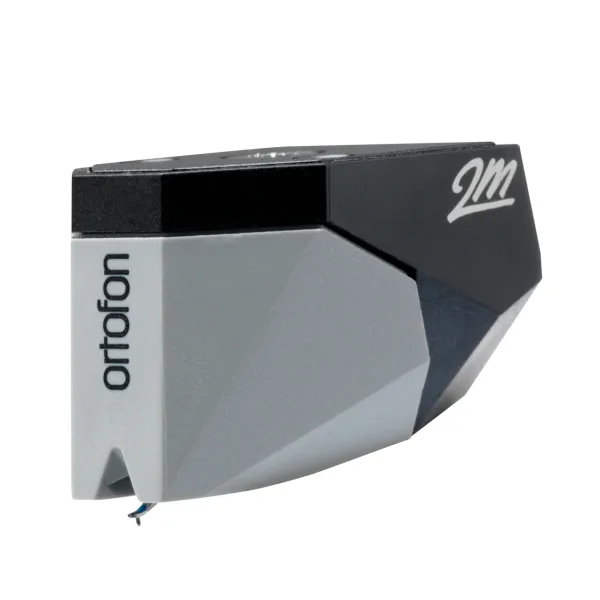

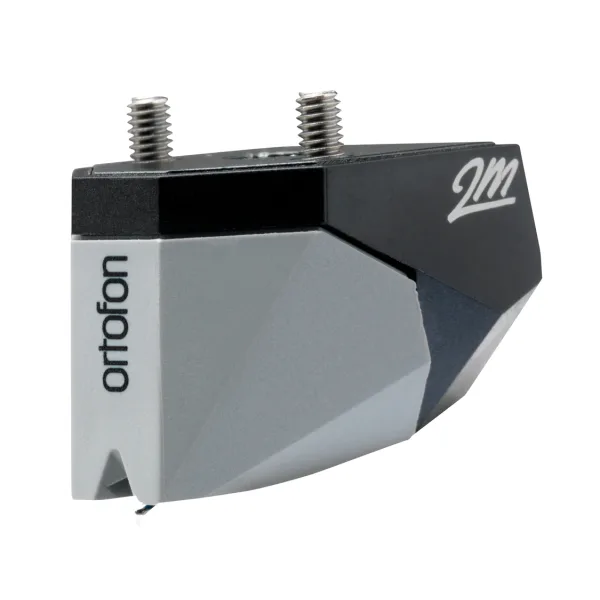

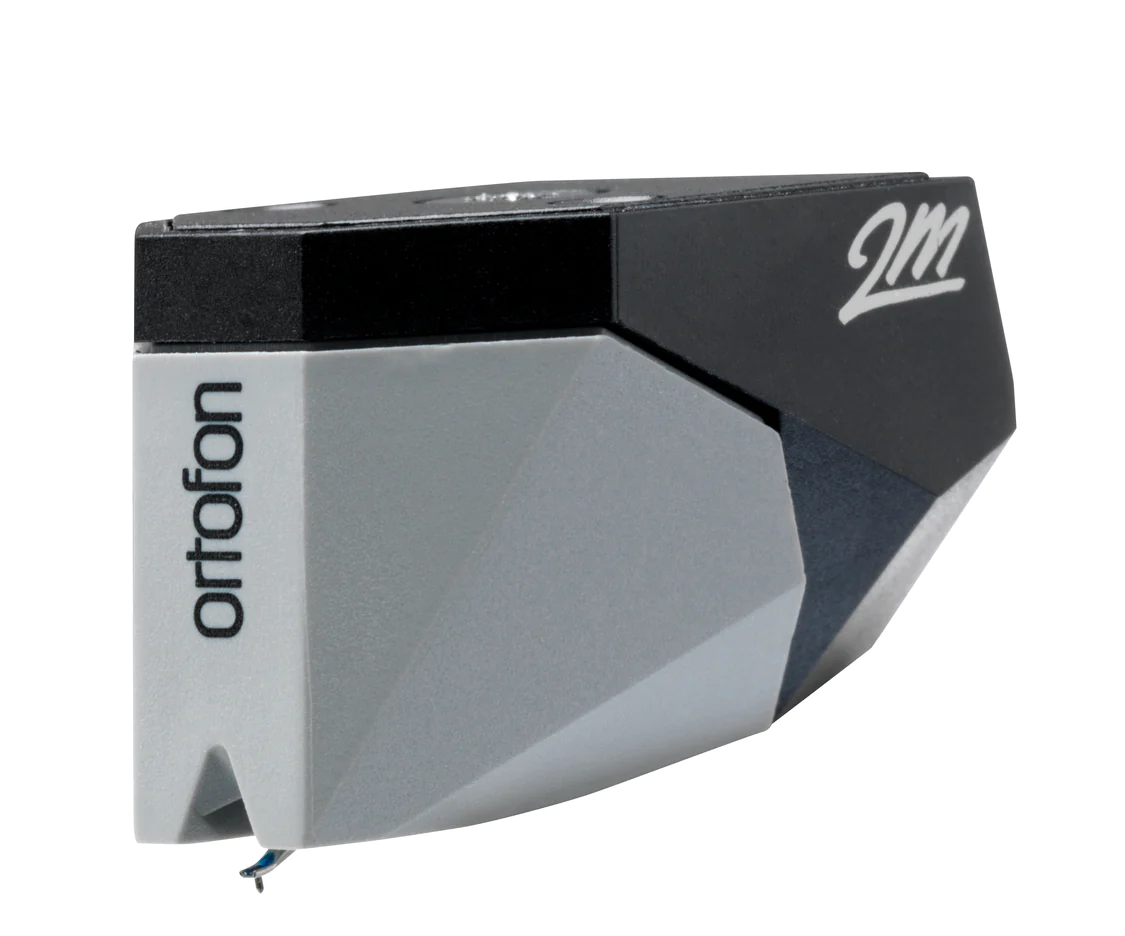

Ortofon 2M 78 Verso

Kirjeldus

Output voltage at 1 kHz, 5cm/sec: 4 mV
Frequency response 20 Hz – 20 kHz: 3 / -1 dB
Tracking ability at 315Hz at recommended tracking force: 70 µm
Compliance, dynamic, lateral: 18 µm/mN
Stylus type: Spherical
Stylus tip radius: R 65 µm
Tracking force range: 1.6-2.0g (16-20 mN)
Tracking force, recommended: 1.8 g (18 mN)
Tracking angle: 20°
Internal impedance, DC resistance: 700 Ohm
Cartridge colour: Black/Grey
Cartridge weight: 7.2 g
Premounted cartridge weight: 16.7 g
Recommended load resistance: 47 kOhm
Internal inductance: 350 mH
Recommended load capacitance: 150-300 pF
