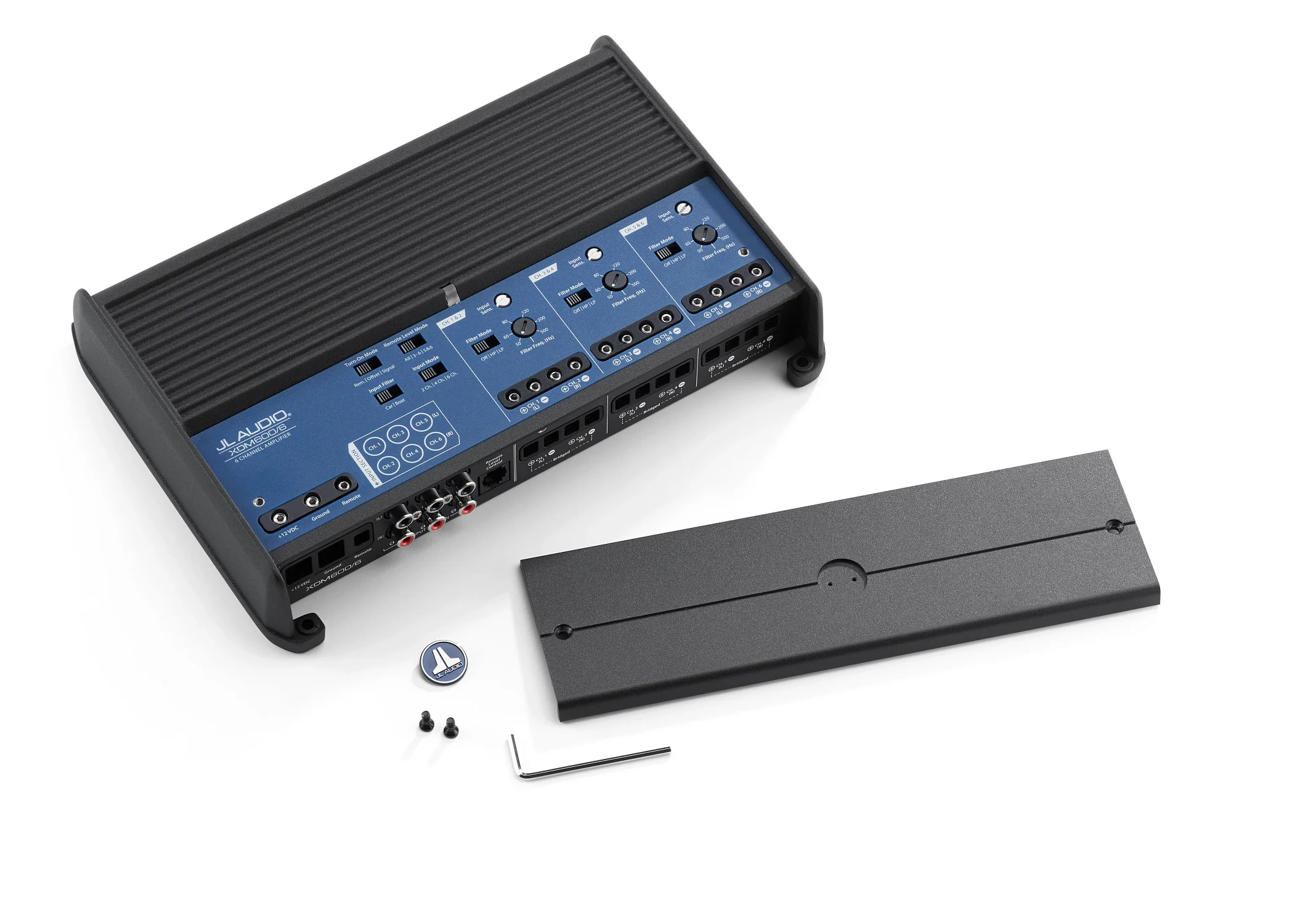

JL Audio XDM600/6

Kirjeldus

Omadused:

Rated Continuous (RMS) Power @ 14.4 V
@ 4 Ω 75 W RMS x 6
@ 2 Ω 100 W RMS x 6
Bridged @ 4Ω 200 W RMS x 3

Rated Continuous (RMS) Power @ 12.5 V
@ 4 Ω 60 W RMS x 6
@ 2 Ω 90 W RMS x 6
Bridged @ 4Ω 180 W RMS x 3

Signal Processing
Filter Mode(s) Low-Pass or High-Pass
Filter Slope(s) 12 dB/octave
Filter Frequency Range 50 Hz – 500 Hz
Detented, Calibrated Filter Freq. Potentiometers Yes
Filter Defeat Function Yes
Remote Level Control Optional HD-RLC or MHD-RLC (water-resistant)
Remote Level Modes 2 or 4 or All Channels
Channel Input Mode Switch Yes (2/4/6 ch.)
Pass-Through Preamp Output None
Source Channel Selection for PreOuts N/A

Physical Specifications
Height (H) 2.05 in / 52 mm
Width (W) 10.23 in / 260 mm
Depth (D) 7.09 in / 180 mm
Net Weight 5.8 lb / 2.63 kg
