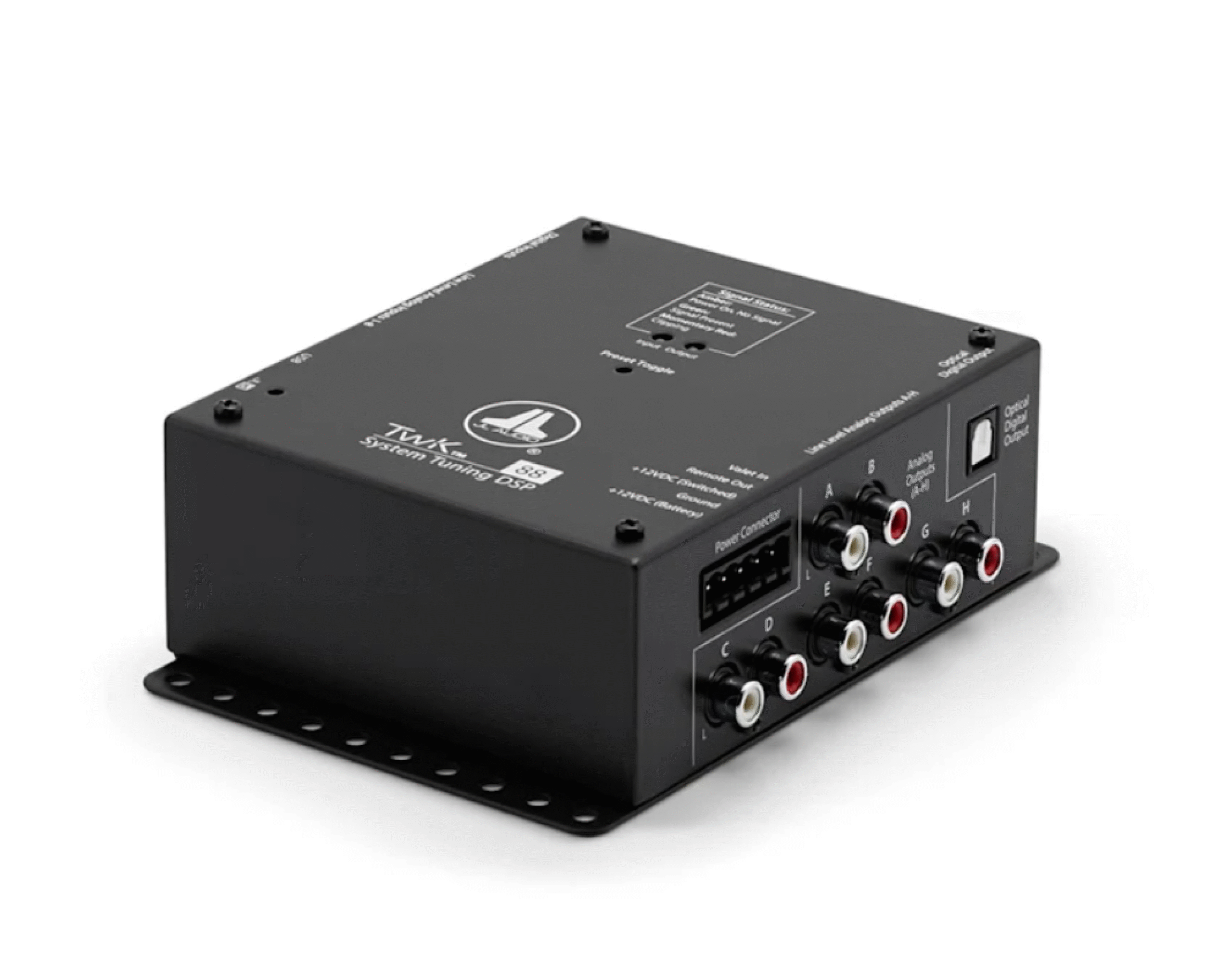

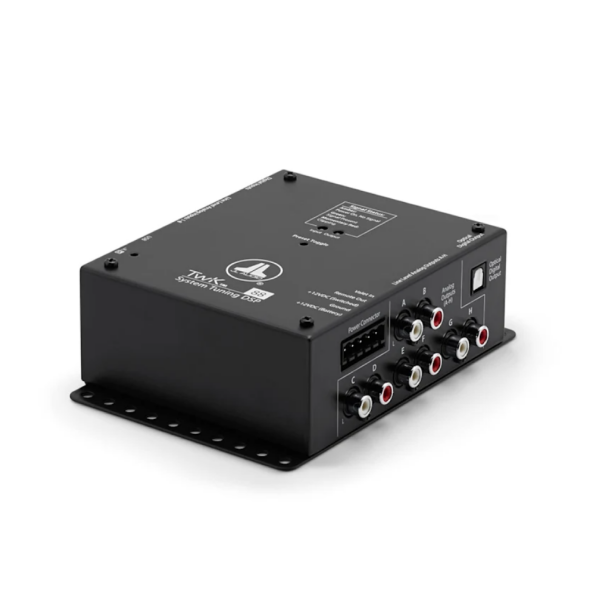

JL Audio TwK® süsteemi häälestav DSP

Kirjeldus

Omadused:

Input channels TwK-88: 8
TwK-D8: 1 Digital Input
Output channels 8
Physical dimensions (Height) 1.85″ (47 mm)
Physical dimensions (Width) 4.29″ (109 mm)
Physical dimensions (Depth) 6.14″ (156 mm)
Weight
2.58 lbs (1.17 kg)

Signal-to-Noise Ratio @ 4 V (RMS) TwK-88: 98 dB
TwK-D8: 96 dB
THD+N @ Rated Power 0.02% (20 Hz-20 kHz)
Input type Line-level, Differential-balanced
Input voltage range 250 mV-7.1 V RMS
Minimum input voltage 10 mV RMS
Input level setting TwK-88: Eleven discrete selections from 250 mV-7.1V RMS
Analog output Unbalanced, stereo RCA jacks
Digital output Optical (Toslink) output (S/PDIF)
Output impedence 450 Ω
Current consumption (Standby) <1.5 mA
Current consumption (Idle) 0.7 A
Fuse rating 1 A

Latency Optical – Optical: 4.860 mS
Optical – Analog: 4.805 mS
TwK-88: Analog – Analog: 5.425 mS
TwK-88: Analog – Optical: 5.470 mS
Audio resolution 24 bit/48 kHz
Number of EQ bands 10 x 8 Channels
Remote level control Included (DRC-200)
Remote level modes Master Volume Control + Trim; Master Volume Control + Fader; Zone Control, LED Status Reporting
