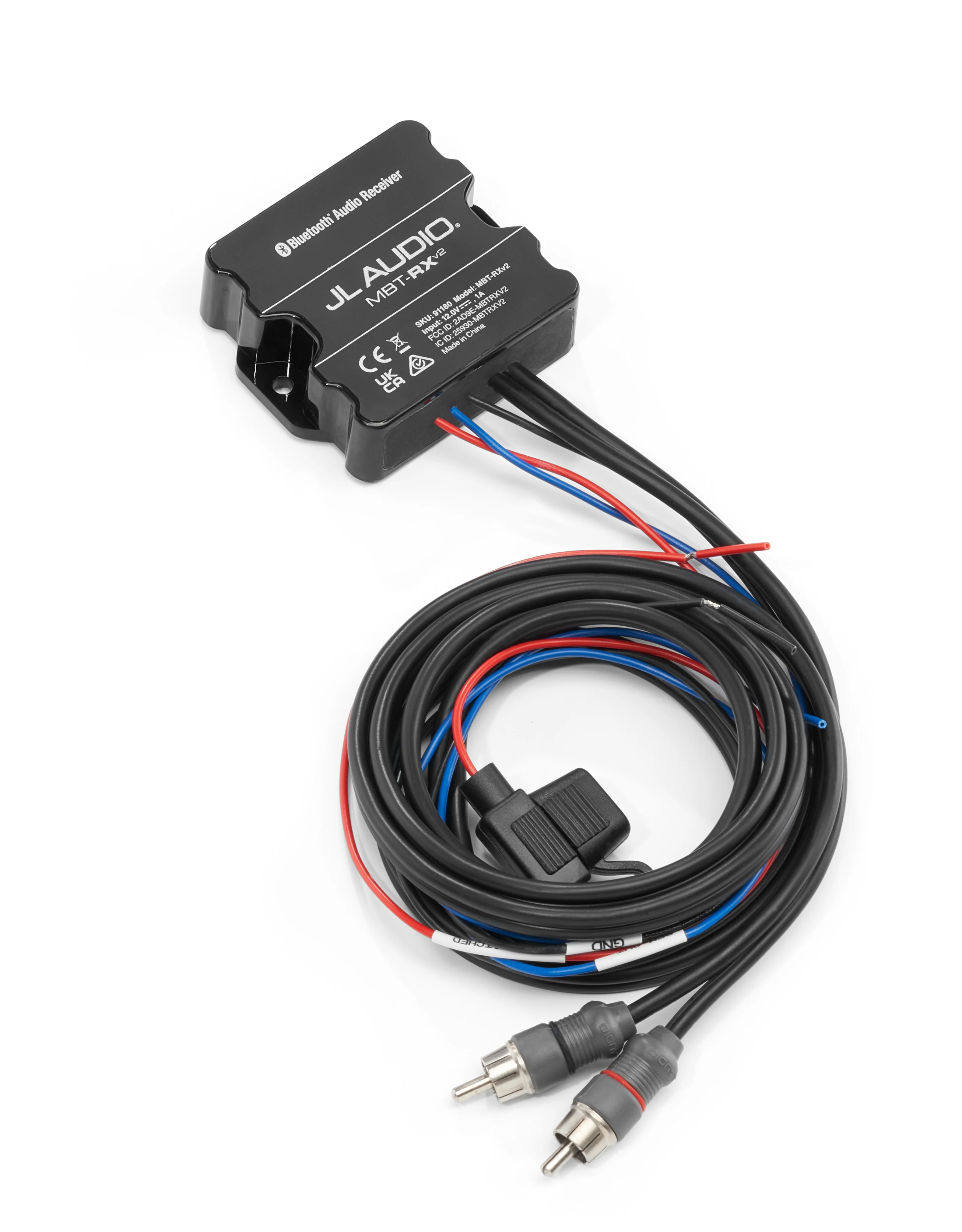

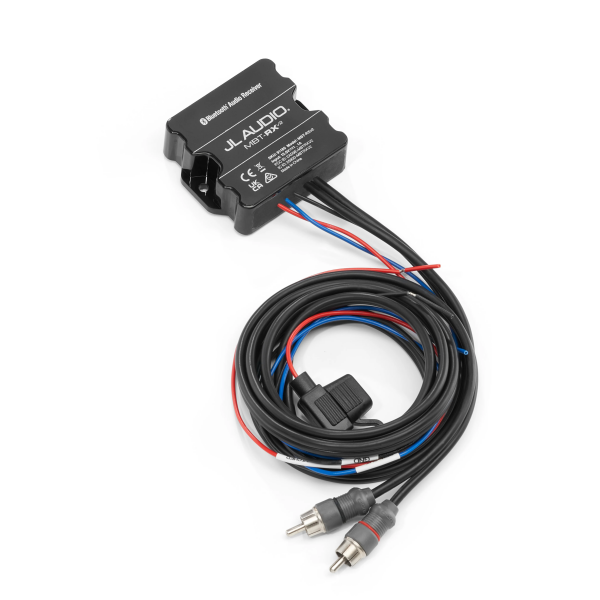

JL Audio MBT-RXv2

Kirjeldus

General Specifications

Bluetooth® Profile A2DP (High-Quality, Stereo Audio)
Bluetooth® Core Specification Version 5.0 with Qualcomm® aptX™-HD audio
Frequency Response 20 Hz – 20 kHz (±1dB)
Outputs One Stereo Pair, Low-Level RCA Plugs
Output Voltage 4V RMS
S/N Ratio 100 dB (20 Hz – 20 kHz)
Input Operating Voltage 10 – 16 VDC
Current Draw 40 mA
Fuse Rating 2 A Mini ATC
Connection Range* Up to 35′ / 11 m

Physical Specifications

Width (W) 2.64 in / 67 mm
Height (H) 2.28 in / 58 mm
Depth (D) 0.79 in / 20 mm
