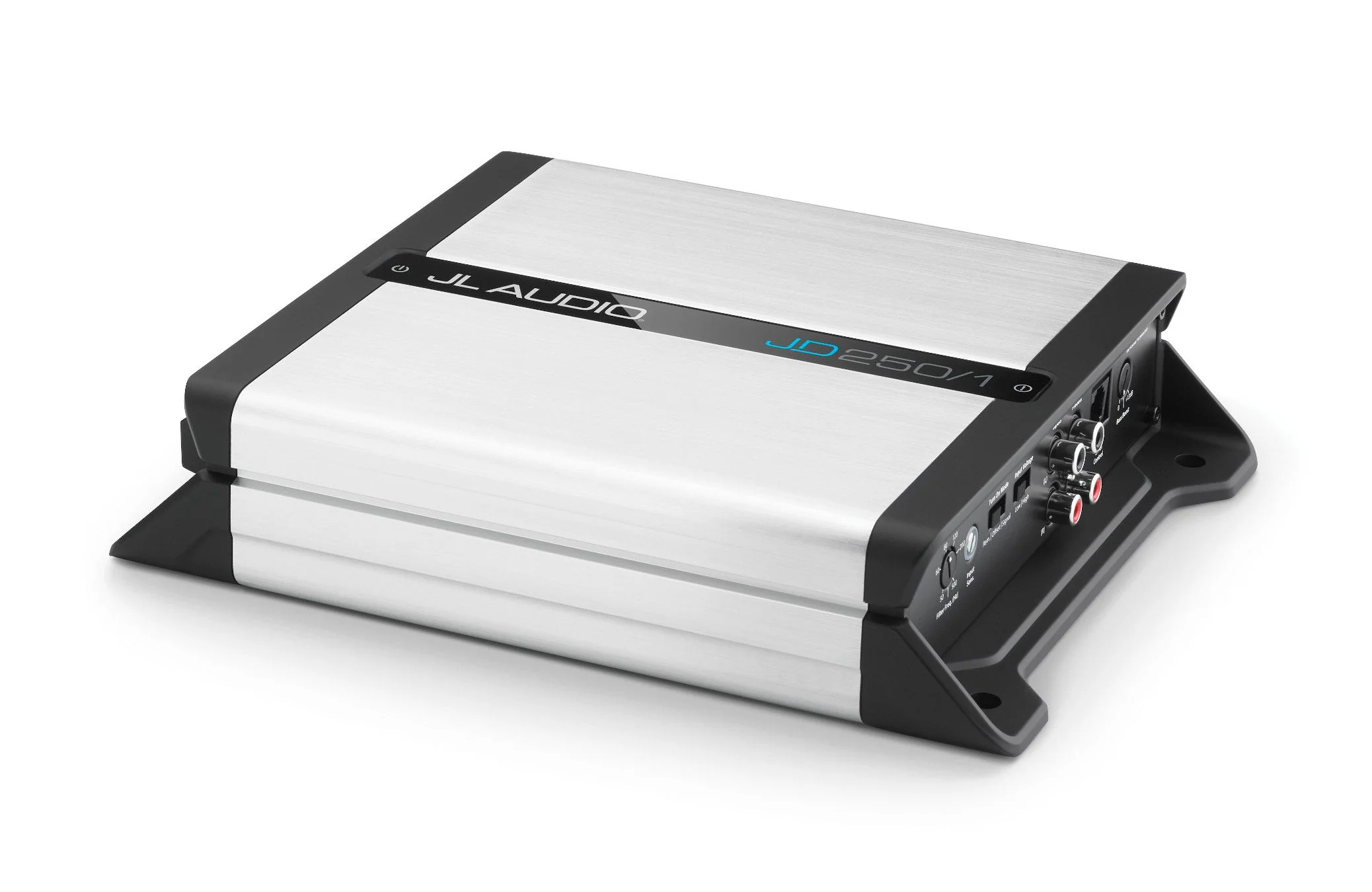

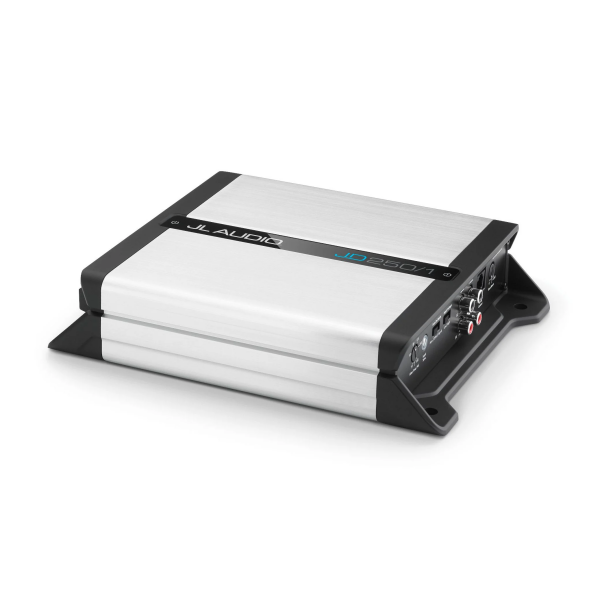

JL Audio JD250/1

Kirjeldus

Omadused:

Rated Continuous (RMS) Power @ 14.4 V
@ 4 Ω 150 W RMS x 1
@ 3 Ω 200 W RMS x 1
@ 2 Ω 250 W RMS x 1
@ 1.5 Ω N/A

General Specifications
Frequency Response 7 Hz – 500 Hz (+0, -1dB)
S/N Ratio, referred to highest rated power >80 dB below rated power (A-weighted, 20 Hz – 20 kHz noise bandwidth)
S/N Ratio, referred to 1 W >60 dB (A-weighted, 20 Hz – 20 kHz noise bandwidth)
Damping Factor @ 4 Ω >1000 / 50 Hz
Damping Factor @ 2 Ω >500 / 50 Hz
THD+N @ Rated Power <1% @ 2 Ω per Ch.
Input Voltage Range @ RCA Inputs Switchable from 200 mV – 2 V RMS (Low) to 800 mV – 8 V RMS (High)
Min.Copper Power / Ground Wire Gauge 8 AWG wire
Fuse Rating 30 A (AFS, AGU or MaxiFuse™)

Physical Specifications
Height (H) 2.10 in / 53 mm
Width (W) 9.50 in / 242 mm
Depth (D) 7.50 in / 190 mm
