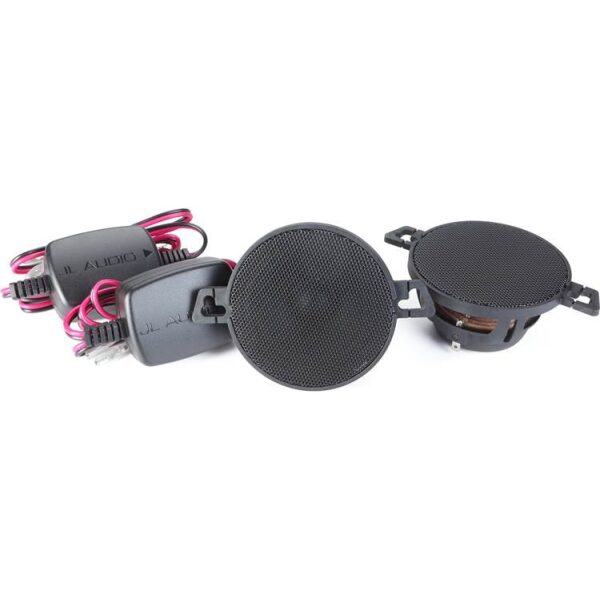

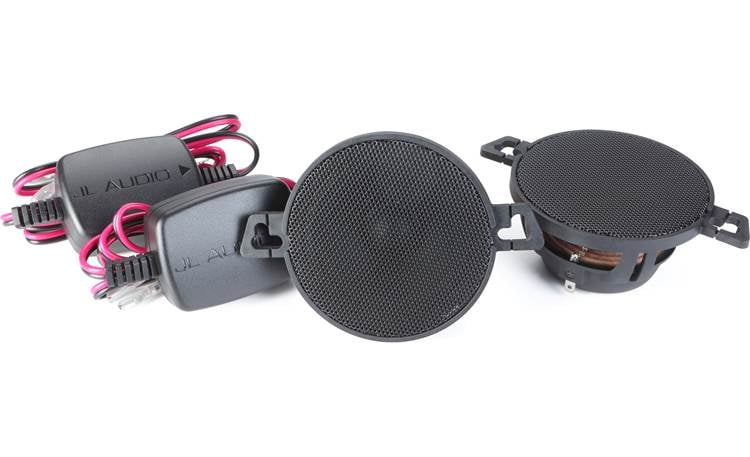

JL Audio CF-350mt

Kirjeldus

Omadused:

Continuous Power Handling (RMS) 35 W
Recommended Amplifier Power (RMS) 10 – 50 W / Ch.
System Efficiency 86.0 dB @ 1 W / 1 m
System Nominal Impedance 4 Ω
System Frequency Response 450 Hz – 20 KHz ± 3 dB

Frame Outer Diameter* (A) 3.46 in / 88 mm
Grille Tray Outer Diameter (B) N/A
Motor Outer Diameter (C) 1.29 in / 33 mm
Frontal Coaxial Tweeter Protrusion (D) N/A
Frontal Grille Protrusion (E) 0.26 / 7 mm
Mounting Hole Diameter (F) 3.12 in / 80 mm
Mounting Depth (G) 1.59 in / 40 mm
