DALI DALI PHANTOM E-80 WR

Kirjeldus

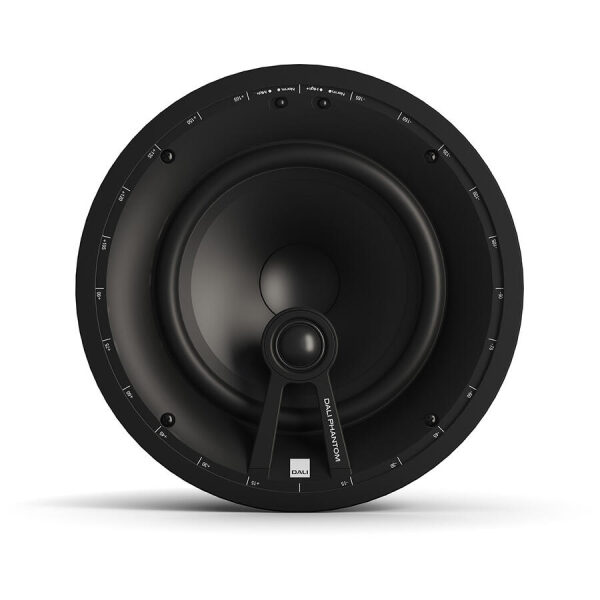

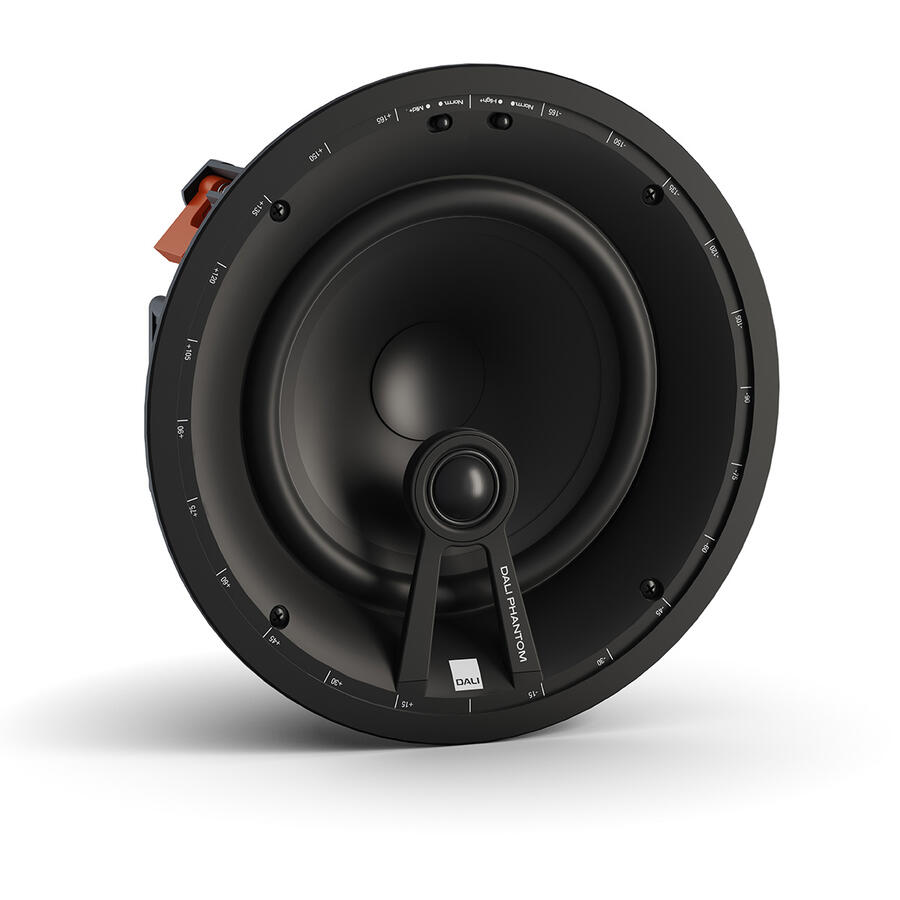

The PHANTOM E-60 WR and E-80 WR are in-ceiling/in-wall loudspeakers for almost any location and any audio system. Engineered weather resistance and IP65 rated ingress protection makes the E-WR series suitable for high humidity and covered outdoor locations such as bathrooms, and patios. And their wide dispersion DALI designed bass/midrange drivers and 25 mm dome tweeters result in performance appropriate for the widest possible variety of audio systems. E-WR series installation, through swing-out dogleg clamps, requires no specialist tools, and the inclusion of both midrange and high frequency level adjustment (High+/Mid+) provides unbeatable configuration versatility.

– Frequency range: 49 – 25,000 Hz ±3 dB
– Sensitivity: 89 dB @ 1 m for 2.83 V
– Nominal impedance: 6 Ω
– Maximum SPL: 107 dB
– Crossover frequency: 3,200 Hz
– Crossover principle: 2-way
– Recommended amplifier power: 30 – 150 Watt
– High frequency driver: 1x 25 mm soft dome
– High frequency diaphragm: Soft woven fabric
– Low/Mid frequency driver: 1x 8"
– Low/Mid frequency diaphragm: Polypropylene
– Connection input: Single wire
– Enclosure type: Open back
– Other features: Normal/High+, Normal/Mid+, Galvanized grille
– Installation location: In-ceiling/In-wall
– Recommended placement: Ceiling/Front/Centre/Surround
– IP rating: IP65
– Outer dimensions incl. grille (H x W x D): Ø 295 x 116 mm
– Outer dimensions excl. grille (H x W x D): Ø 278 x 113 mm
– Cut-out dimensions: Ø 261 mm
– Mounting depth: 109 mm
– Recommended rear volume (backbox): 10 – 100 litres
– Optimum rear volume: 30 litres
– Ceiling/wall thickness (total dog-leg span): 10 – 70 mm
– Weight incl. grille: 2.50 kg
– Shipping weight: 3.50 kg
– Finish: White
– Accessories: Manual, Cut-out template, Front grille, Logo badge
– Optional accessories: Pre-construction Kit PHANTOM UNIVERSAL 25 backbox
