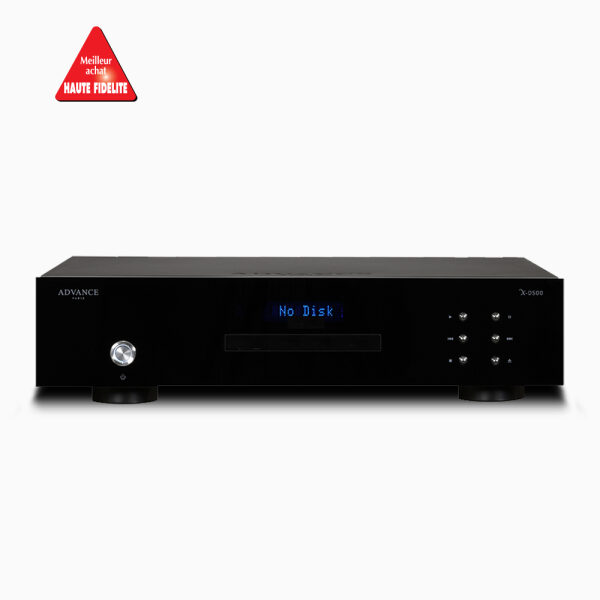

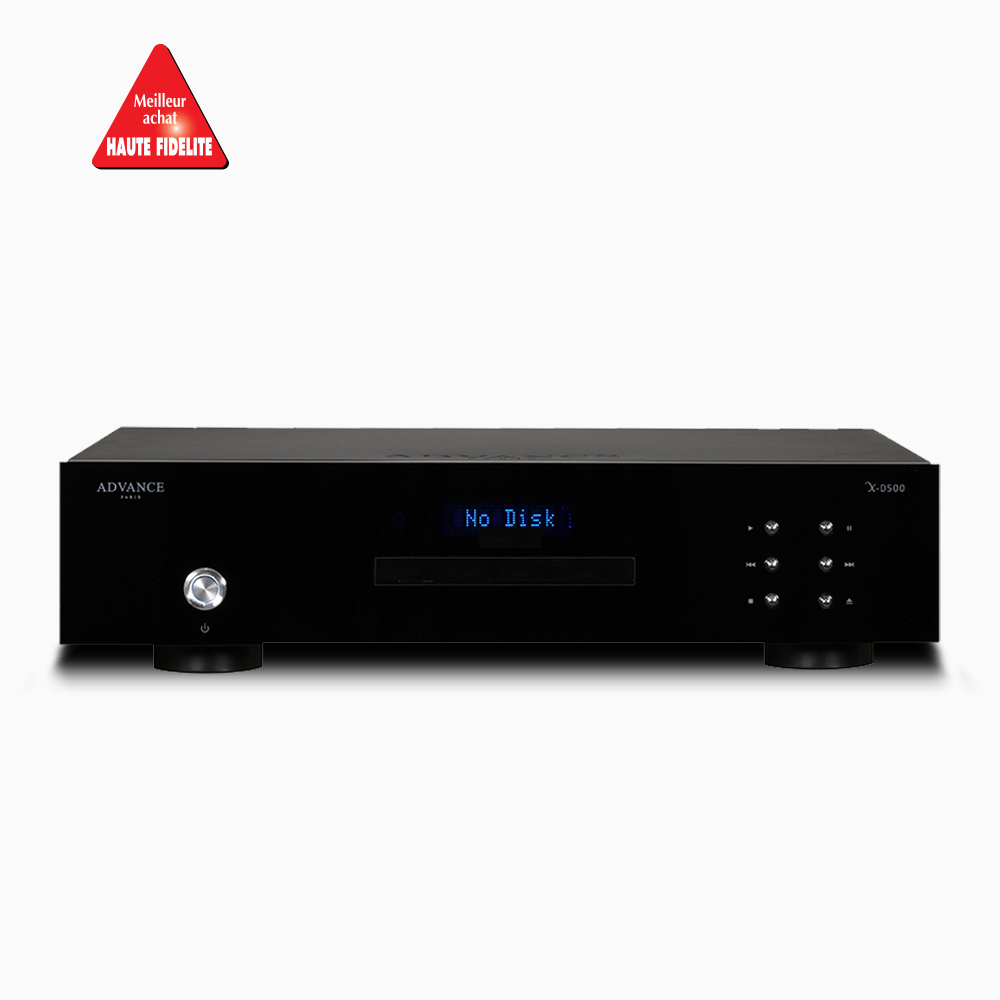

Advance Paris X-D500

Kirjeldus

The X-D500 is a CD Transport that concentrates on its main task: extracting the purest digital information from the CD.

Analog conversion must be carried out via a digital-to-analog converter (DAC) or an amplifier with digital sockets.

Lʼalimentation de type linéaire se base sur 2transformateurs toroïdaux pour une parfaite séparation des différentes alimentations. Circuits required for product operation, such as mechanical management, laser signal processing…

An up-sampling function transforms the original digital signal (16bit/44.1kHz) into a high-definition signal (24bit/96kHz or 24bit/192kHz).

The X-D500 benefits from a highly rigid chassis thanks to its mechanical design. Equipped with Coaxial (RCA), Optical (TOSLINK) and AES / EBU (XLR) digital outputs, the X-D500 is a high-end CD source for yourHi-Fi system.

Compatible with all our products (except the X-i50BT), it will allow you to enjoy your CDs, media that are still a reference for their audio quality.

Tehnilised andmed:

AC input compatibility: 115V / 230V
Standby power consumption: Inf. AT 0.5 W
Max. consumption: 16,1 W
Transformer power: 15 VA / 25 VA
Type of transformer: (2X) Toroidal
Outputs: AES/EBU (XLR – 110 Ohm), Coaxial (RCA – 75 Ohm), Optical (TOSLINK)
Remote control: Yes
Trigger socket: 1 (IN) 5-12V
Oversampling: Yes (24bit/96kHz – 24bit/192kHz)
Accessories: IR remote control, Power cord
Width: 431 mm
Height: 109 mm
Depth: 372 mm
Net Weight: 8,2 kg
Gross Weight: 9,6 kg
Uninterrupted CD playback: No (micro-cut between tracks)
